3-axis accelerometer / MEMS / high-sensitivity
AS400

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
3-axis accelerometer 3-axis accelerometer - AS400
{{requestButtons}}

Characteristics

  • Number of axes:

    3-axis

  • Technology:

    MEMS

  • Other characteristics:

    high-sensitivity

  • Acceleration range:

    Max.: 15 m/s² (49 ft/s²)

    15 m/s² (49 ft/s²)

    Min.: -15 m/s² (-49 ft/s²)

  • Frequency:

    Max.: 100 Hz

    100 Hz

    Min.: 100 Hz

Description

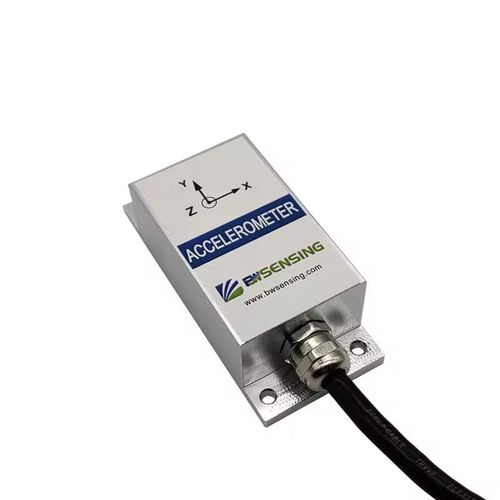

MEMS accelerometer AS400

Product Introduction:
AS400 is a high-sensitivity low-drift digital output tri-axis acceleration sensor developed by BEWIS Sensor. It is suitable for different industrial fields such as vibration monitoring and impact testing.

Technical Specifications:
Model: AS400

Measurement range: ±3g (three axes)

Resolution: 0.375mg

Linear error: 0.1%

Temperature drift: 10mg

Power: ≤0.5 W


Application
●Fan shake monitoring
●Building monitoring
●Seismic signal detection
●Bridge deflection monitoring
●Tunnel and dam monitoring
●Machinery and equipment health monitoring
