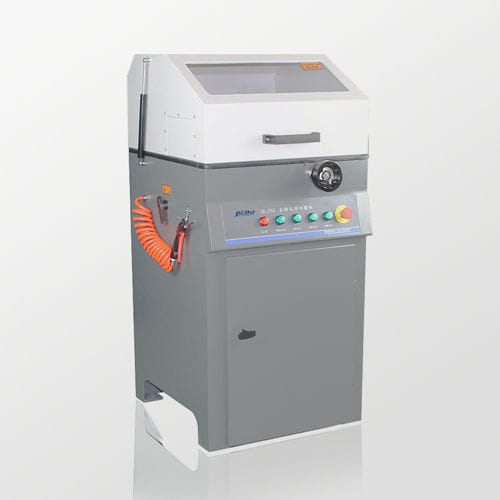

Metallographic cutting machine JB-250knifefor metalsample
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for metal
- Product handled
- sample
- Associated function
- sealing
- Applications
- metallographic
- X travel
210 mm
(8 in)- Y travel
208 mm
(8 in)
Description
Suitable for metallographic sample cutting
Fully Enclosed Structure
*Good sealing effect
*Safe and reliable
*Quick clamping device to clamp object
Comprehensive Configuration
*Double gas spring device
*Special cooling water tank
*Stainless material and have long service life
Maximum Cut Section - Φ65mm
Cutting Sheet Specifications - 250*1.5*32mm resin
Speed - 2800r/min
Motor - 2.2KW 380V 50HZ
Emergency Brake Device - Emergency stop switch
Cutting Room Lighting - Low-voltage DC illumination
Cutting Platform Specifications - 210*208mm
Clamping Device - Standard quick clamps (one left and right)
Cooling Device - External circulating filter tank 60L, multiple sets of adjustable water spray device and washing water gun
Cutting Mode - Manual cut and cut
Observation Window - Explosion-proof transparent engineering plastics
Dimensions - 690*620*1340
Weight - 180KG
