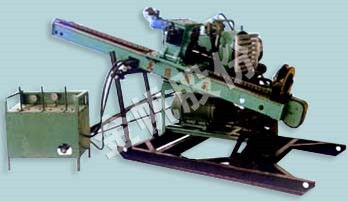

Horizontal drilling rig YG-30
deepfixedrotary

horizontal drilling rig
horizontal drilling rig
horizontal drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
horizontal
Applications
deep
Mobility
fixed
Drilling unit
rotary
Other characteristics
hydraulic, construction
Drilling diameter

Max.: 130 mm
(5 in)

Min.: 80 mm
(3 in)

Drilling depth

Max.: 40 m
(131'02" )

Min.: 30 m
(98'05" )

Overall length (working)

2,700 mm
(106 in)

Overall width (working)

1,150 mm
(45 in)

Overall heigth (working)

1,400 mm
(55 in)

Motor power

15 kW
(20.39 hp)

Description

YG-30 construction drilling rig is used for drilling anchor holes in deep base pit of high building,anchor and reinforce side-slope for water conservatory project, water power station project,railways and highways . Especially used for drilling anchor holes in high position side-slope protection and drainage holes. Features ● YG-30 drilling rig is a full hydraulic operated top drive power head drill. It is composed of main set, control panel and pump which are connected together with flexible joint. So it features simple in structure, good disassembility and convenient to mount and transport. ● Operating drill through the centralized control panel ensures assure safety operation and on-site cleanliness. ● Transmission, built in the top drive power head, has two speed range ― high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling. ● Hydraulic part is an international famous brand product which ensures drilling rig's high reliability and permanence stability.
