Mobile Electric Drum Mixer/Drum Rotator

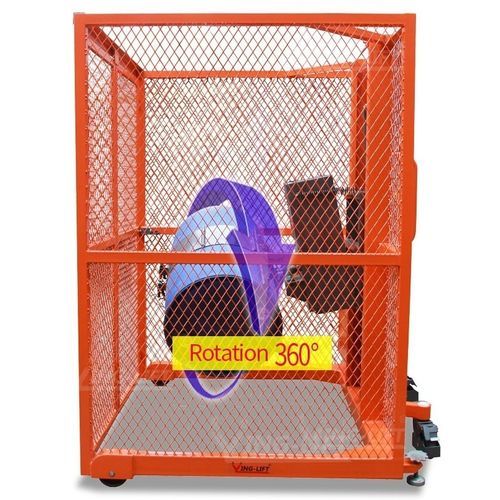

Mobile Electric Drum Mixer/Drum Rotator TY400D
1.Rated load capacity 400kg;
2.Features an interlocked front for safety;
3.Drum mixer rotates steel drums or plastic drums end offering a fast and efficient way of mixing chemicals,achieving a thorough mix in a short time;
4.Drum can manually be clamped and then electric power rotation 360 degree;
5.Electric lifting height up to 650mm;
6.Suitable for drum mixing of paint,coating,printing ink and chemical liquid materials.
Operation Instruction:
1.Electric lifting the inner frame to a certain height;
2.Manually clamped the drums,and the rotation can be switched on only when inter-lock safety gate at the front of the unit is closed.
• Overall length : 1700mm
• Overall width : 1650 mm
• Overall height : 2080 mm
• Load capacity : 400kg
• Net weight : 450kg
• Lifting height : 400mm
• Rotating speed : 18r/min
• Motor power : 1.1 kw
• Voltage : 220/380V
