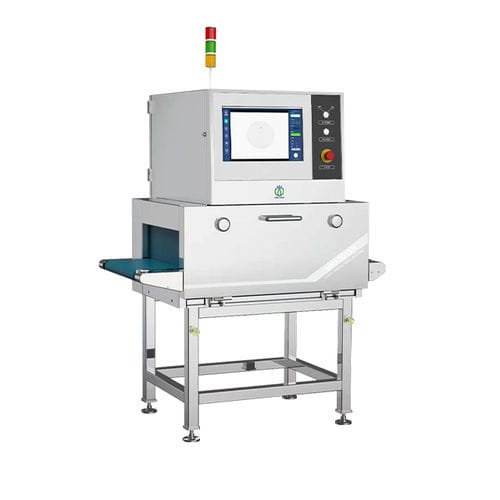

X-ray detector UNX3015-S

industrialmonitoringfor inspection

Bagged Food X-ray Foreign Object Detection Equipment UNX3015-S UNX3015-S is used to detect foreign matter contaminants in Bagged Food and so on. Equipment Features : • Dimension : 1050(W)X900(D)X1800(H)mm • Power Supply : AC 110/220V, 50/60Hz • Machine weight : 300kg • X-ray Source : 80-120kv/100-320W • Detector : 0.8mm high resolution detector • Channel size : 300mm(W)*150mm(H) • Conveyor Speed : 10-60M/min • Max. Loading weight : 10kg • Operating Range : 10°C to 40°C (50°F to 104°F), • 30% to 90% relative humidity non-condensing Capability : • Detection Accuracy : SUS BALL≥ø0.5mm • SUS wire≥ø0.3*2mm • Glass ball≥ø1.5mm • Ceramic ball≥ø1.5mm Other : • Ingress protection : Conveyor: IP65 • X-Ray Safety : <1μSv/h
