Active pharmaceutical ingredient integrated production system

skid-mounted

High-risk Material Integrated Skid-Mounted System

Integrating reaction, crystallization, decolorization, filtration, washing, drying, solvent recovery, temperature control and intelligent control into a single unit, with fully enclosed operation throughout the entire process. We provide a full turnkey solution covering equipment manufacturing, valves and piping, instruments and meters, control systems, skid fabrication, engineering design and system commissioning — especially suitable for high-risk processes involving highly active APIs, highly toxic, flammable and explosive materials.


Application

• Materials: SS304, SS316L, Titanium, Hastelloy, PTFE lined, with or without insulation
• Suitable for food, dairy, fruit juice beverages, pharmaceutical, chemical and biotechnological production

Summary

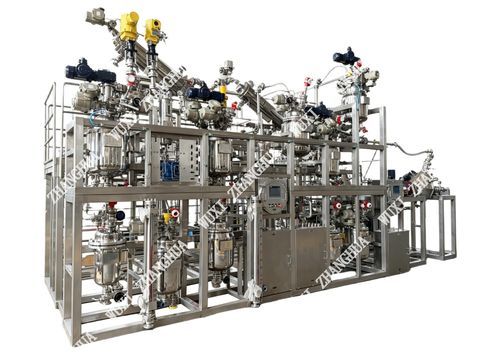

Skid-mounted reacting, crystallizing, filtering and drying production systems integrate reaction, crystallization, filtration, washing, drying and discharge in a vertical arrangement. The skid layout includes ingredient tanks, crystallizer(s), Agitated Nutsche Filter, single-cone dryer(s) and storage tanks connected by piping. Each unit can operate independently to optimize throughput and enable flexible production planning. Skid-mounted design reduces footprint, simplifies installation and shortens delivery time.

Features

• Crystal form control: gravity transfer between levels minimizes mechanical damage to crystals
• High productivity: independent units and optimized startup sequencing increase throughput
• Product integrity: fully sealed process to prevent contamination and leakage
• Reduced operator exposure: high automation level allows for unmanned or low-man operation
• Cleanability: supports CIP and SIP; minimal process residues and accessible individual-unit cleaning/sterilization

Drying & Sampling
Universal batch dryers for powders, granules, pastes and viscous slurries, including heat-sensitive, solvent-containing, toxic or explosive materials. Solvent vapors are exhausted through a dust filter at the vessel top. The system includes a vacuum sampler for product sampling under inert/vacuum conditions.

Design / Calculation Software
Design and calculation software support is provided for equipment configuration, process simulation and sizing.

Custom Service & Scope

• Equipment for pharmaceutical and chemical production: multifunctional 'Three-in-One' units (filtration, washing, drying), crystallizers, reaction kettles, sterile double-cone dryers, rake/paddle vacuum dryers, plate-fin heat exchangers
• Special options: pressure-rated vessels, corrosion-resistant materials, sterile design; linings: PTFE/plastic/enamel; exotic alloys: Ti, HC22, Monel
• Typical customization ranges: double-cone 20L–20m3; rake dryers (mechanical seal) up to 16m3; DN300–DN600 'Three-in-One' units
• Services: on-site inspection, engineering optimization, fast troubleshooting, on-site installation, committed customization lead times, long-term on-site technical support, spare parts supply, commissioning and operator training

Technical Specifications

• Place of Origin: CHINA
• Brand Name: Zhang
• Model Number: Customization
• Certification: CE, ASME, PED, MOM
• Minimum Order Quantity: 1 Set
• Price: Starting at $100,000
• Packaging Details: Wooden pallets / cartons / plastic stretch-wrap
• Delivery Time: 90-150 DAYS
• Payment Terms: T/T
• Supply Ability: 20 SET/YEAR
• Materials: SS304, SS316L, Titanium, Hastelloy, PTFE lined (with or without insulation)
• Applicable industries: Food, dairy, beverages, pharmaceutical, chemical, biotechnology
