Winch with combustion engine W-200
wire ropesled-mounted

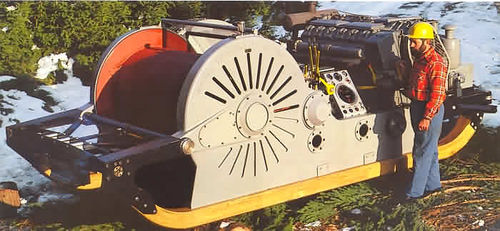

Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted
Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted
Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted - image - 2
Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted - image - 3
Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted - image - 4
Winch with combustion engine - W-200 - Wyssen Seilbahnen AG - wire rope / sled-mounted - image - 5
Add to favorites
Compare this product

Characteristics

Operation
with combustion engine
Type
wire rope
Other characteristics
sled-mounted
Capacity

Max.: 10,200 kg
(22,487.15 lb)

Min.: 1,700 kg
(3,747.86 lb)

Speed

Max.: 8 m/s
(26.2 ft/s)

Min.: 1.2 m/s
(3.9 ft/s)

Cable diameter

Max.: 25 mm
(0.98 in)

Min.: 16 mm
(0.63 in)

Cable length

Max.: 3,000 m
(9842'06" )

Min.: 1,730 m
(5675'10" )

Weight

6,800 kg
(14,991.434 lb)

Description

The W-200 is the biggest and strongest cable winch in our range. It is ideally suitable for very long cableways with very high load capacities. The cable winch is available with different diesel and electrical motors. The cable winch has a hydraulically controlled safety brake in the drum, which closes with a spring action with approx. 15 t braking force. The high-performance air eddy current brake has a braking performance of 400 to 2’000 HP, which is continuously adjustable during operation. The large gearwheel and the external bearing of the vane are lubricated by means of automatic central lubrication with an indicator light.
