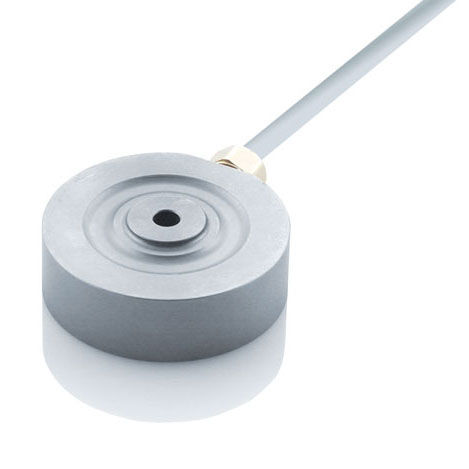

Tension/compression load cell X-130

ringstrain gaugecompact

Suitable for load measurement and as universal force sensor The load cell X-130 is designed as an OEM load cell. It is suitable for load measurement in elevators, either at the fixpoint or under the cabin floor. The large measuring range and the standardized design make it possible to cover a large range of car-weights and payloads. When correctly mounted, the measuring signal is proportional to the payload in the cabin. The solid steel housing and sealed design (IP67) guarantee trouble-free operation, even under difficult environmental conditions. Characteristics: Compact design in solid steel housing IP67 protection Fits to all X-Sensors load measurement devices and strain gauge amplifiers Small height of only 16 mm With central hole Optionally available with upper base plate and lower base plate for mounting Depending on the measuring range, the load cell X-130 has a sensitivity of 1.8 mV/V and 2.0 mV/V. Furthermore, the load cell can be also calibrated with a measuring amplifier from X-Sensors. Using such a calibrated measurement chain, the X-130 can be shipped with a robust industrial signal (e.g. 0-10 V or 4-20 mA).
