Mobile gantry crane

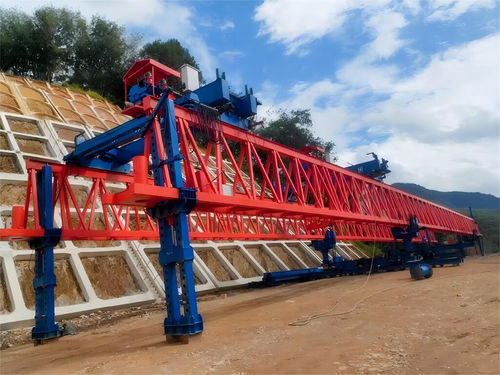

Trussed type 180 ton bridge erecting machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is “C” shape column with rotary and folding technology. The “C” shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle. specific attributes Max. Lifting Height：10m Other attributes Applicable Industries：Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining Video outgoing-inspection ：Provided Machinery Test Report ：Provided Core Components：Engine, Bearing, Gearbox, Motor, Gear Place of Origin： Henan, China Weight (KG) ：200000 kg Condition ：New crane travel speed： 5m/min Rated Lifting Moment： 500kn Span： 50M Lifting speed： 0-1m/min Max. Lifting Load： 200 ton Power supply： 380v 3p or customized Color： Customised Control model： Wireless Remote Control
