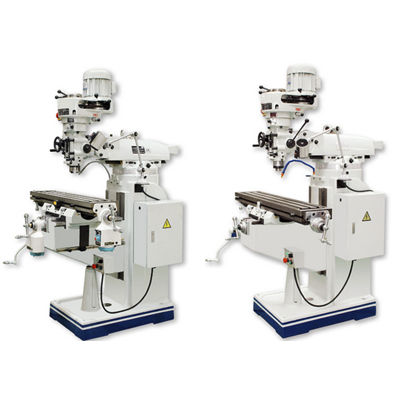

Milling machine with turret X63 series
3-axisswiveling-spindlewith moving table

milling machine with turret
milling machine with turret
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
swiveling-spindle
Other characteristics
with moving table, with turret, CE
X travel

Min.: 650 mm
(26 in)

Max.: 1,000 mm
(39 in)

Y travel

Min.: 305 mm
(12 in)

Max.: 420 mm
(17 in)

Z travel

Min.: 400 mm
(16 in)

Max.: 450 mm
(18 in)

Power

2 kW, 4 kW
(2.72 hp, 5.44 hp)

Description

Main features: Mill head from Taiwan, Variable or step pulley mill head are available. Mehanite cast iron. T-cuite B cover. CE Milling head swivel, front and back, left--right Leadscrew, milling head, nut from taiwan Column and base one piece cast iron, more stable milling X, Y, Z can be with power feed device Spindle taper can be ISO30, R8, ISO40, Standard accessories. Coolant, work light, tool and tool box, chip tray, guideway with splash guard. Optional accessories: DRO, milling chuck, vice, dividing head, slotting head, clamping kit, 24V CE, worktable guieway protection.
