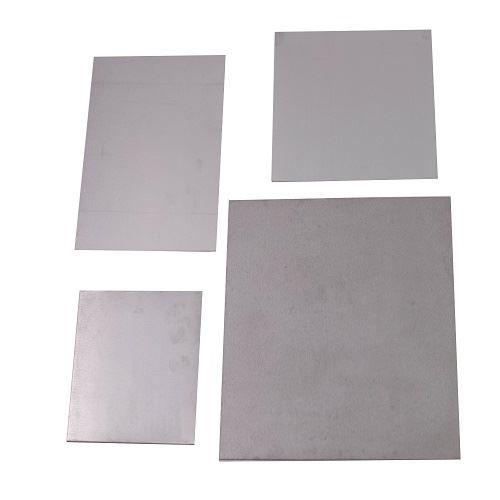

Tungsten alloy plate W-Ni-Fe
Add to favorites
Compare this product
Characteristics
- Shape
- plate
- Thickness
Min.: 0.1 mm
(0.004 in)Max.: 5 mm
(0.197 in)- Length
Min.: 50 mm
(1.97 in)Max.: 300 mm
(11.81 in)- Width
Min.: 50 mm
(1.97 in)Max.: 200 mm
(7.87 in)
Description
Xi'an Refra Tungsten & Molybdenum Co.,Ltd is one of the best China tungsten alloy plate manufacturers and suppliers, and as a professional company we have our own productive tungsten alloy plate factory, welcome to wholesale products from us.
Special specification can be produced according to customer’s requirement.
Chemical Component：W：90-95%；Ni：3.5-7%; Fe: 1.5-3%
Density：≥17.5- 18.1g/cm3
Property：
Tensile Strength：780-980MPa；
Elongation：5-22%
HRC：28-32
Tolerance:
（a）Thickness：< 0.3mm:±0.015mm
（0.3-1.0）mm:±0.03mm
（b）Width：Best tolerance:±0.04mm
（c）Length：Least:±0.5mm
Application：Used in new type medical CT，radiation shield and protection components.
At the same time, we have ability to produce W-Ni-Cu,W-Lan,W-Al,W & Mo composite
target and etc.
