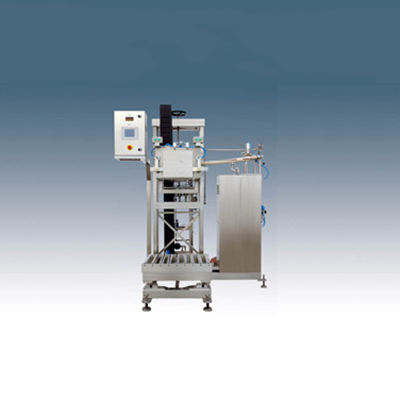

Bag in drum filling machine ASP200

automaticfor jamfruit juice

ASP200 single head bag in drum Aseptic filling machine fill a wide range of products like fruit puree, vegetable juices , jam, herbal medicine extracted liquor,etc. Horizontal filling effectively solve the problem of condensation water drop outside the bag and get products mouldy ASP200 single head bag in drum Aseptic Filling Machine Features : The product equipped with the control system consisting of the man-machine interface and PLC is easy and clear for operation. In addition , it also has function of automatic check and protection. Protection function: electromagnetic flowmeter system increase the filling accuracy and reach the ration filling Applications: Tea concentrates Diary products (ice mix , cream , milk , condensed milk) Fruit products ( Juices, pure, jams, and concentrates) Liquid egg products (Whole egg, egg white and egg yolk) Post mix and syrups Sauces(mayonnaise, ketchup) Water Bakery products Soy Wine Edible oil /coking oil Pharmacy Fertilizer Technical Parameter: ASP200(Single head) Filling capacity: 3~4T/h Bag standard: 1 inch opening aseptic bag Encapsulation precision: 0.5Kg Compressed air:6~8bar 25NL/min Food steam:6~8bar 50Kg/h Electric power:3KVA 380V 50HZ Hydraulic fluctuating Mass flow meter（E+H）
