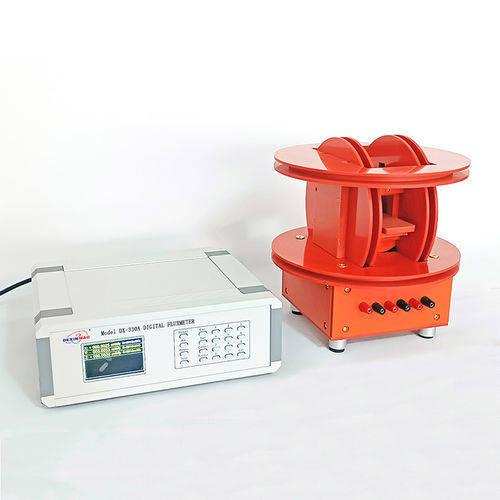

Electromagnetic field fluxmeter DX-330A

digital

Overview

The DX-330A is a precision three-dimensional digital flux meter designed to measure magnetic flux and magnetic fields. It is intended for research and analysis of permanent magnets and soft magnetic materials, and for mass measurement workflows when paired with PC software.

Key features

• High acquisition and display resolution: six-digit display on a 3.5-inch true-color TFT for accurate readings.
• Intelligent automatic drift adjustment with no manual intervention required.
• "Zero first then test" method to eliminate the magnetic flux zero point; direct display of magnetic flux values for simplified operation.
• Built-in upper and lower limit sorting with OK/NG results for quality screening.
• Automated communication interfaces to support rapid automated magnetic flux testing and sorting.
• Automatic compatibility with multiple measuring coils and fixtures without parameter reconfiguration.
• Standard USB Type-B interface and optional measurement software for automated systems and mass data storage.
• Three simultaneous measurement channels.

Testing methods

• Cylinder magnetic flux test: place the sample in the sample stage so that the magnetic field lines pass vertically through the coil.
• Magnetic tile test: place the sample in the sample stage so that the magnetic field lines pass vertically through the coil.
• Coil (longitudinal probe) measurement: place the longitudinal probe in the central area of the solenoid for measurement.

Technical specifications

• Input power: AC 220 V ±10%, 50/60 Hz, 1 A
• Display: 3.5-inch true-color TFT LCD, six-digit display
• Overall dimensions (W × D × H): 307 mm × 260 mm × 120 mm
• Weight: approximately 3.5 kg
• Environment: temperature 0℃–50℃; humidity 40%–85% RH
• Thermal equilibrium time: connect signal input device and wait about 20 minutes for drift to stabilize
• X magnetic flux ranges: 10 mWb / 20 mWb / 50 mWb / 100 mWb (four-range, expandable)
• Y magnetic flux ranges: 10 mWb / 20 mWb / 50 mWb / 100 mWb (four-range, expandable)
• Z magnetic flux ranges: 10 mWb / 20 mWb / 50 mWb / 100 mWb (four-range, expandable)
• Minimum resolution: 0.1 µWb (full-range application)
• Drift adjustment: intelligent automatic drift adjustment (no manual operation)
• Number of channels: three channels (simultaneous measurement possible)
• Integral drift: ≤ 1 µWb/min or 0.01% RG/min (use the larger value)
• Accuracy: ≤ 0.3% RD + 10 µWb (≥ 50% full scale)
• Sorting function: user-set upper and lower limit sorting parameters
• Communication interface: USB Type-B port
• Automatic interface: butt connector (weld-free) optional
• Digital output: RS232C interface (optional)
• Analog output: full-scale corresponding ±10 V, butt connector (optional)
• Measuring software: available for Windows XP, Windows 7, Windows 10 (32/64-bit)
• Notes: RD indicates the read value; RG indicates the current range value. Product specifications may be updated; actual contract/data shall prevail.
