cellular communication router / Ethernet / RS232 / 4G

Add to MyDirectIndustry favorites
Compare this product
cellular communication router / Ethernet / RS232 / 4G cellular communication router / Ethernet / RS232 / 4G - F3826


  • Type:


  • Network:

    Ethernet, RS232, 4G, 4G LTE, LTE, WiFi, HSPA, 3G

  • Mounting:

    DIN rail, DIN rail mounted, outdoor

  • Number of ports:

    3 port

  • Other characteristics:

    firewall, with VPN, VPN

  • Applications:

    industrial, network, for the automobile industry, for IoT applications, for remote PLC maintenance, for vending machine applications, for remote access, for ATM application, for mobile applications

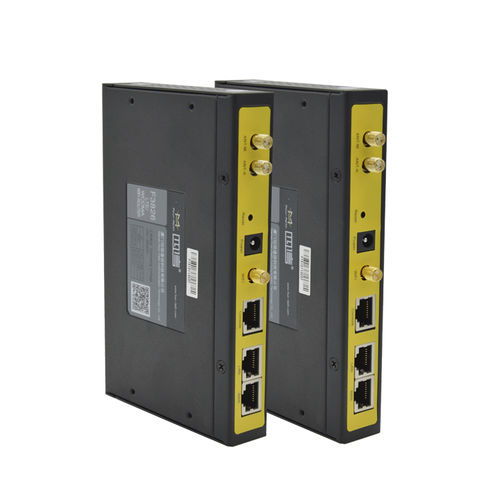

F3826 4gLTE/UMTS/WCDMA WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public GPRS network.

It adopts high-powered industrial 32-bits CPU and embedded real time operating system.

It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

Main Features:

1.Support multiple WAN access methods, including static ip,

2.Support double link backup between cellular and
WAN(PPPOE, ADSL) (optional)

3.Support VPN client/Server(PPTP, L2TP, OPENVPN, IPSEC
and GRE)

4.Support local and remote firmware upgrade,import and
export configure file.

5.Support NTP, RTC embedded.

6.Support mulitiple DDNS provider service.

7.Support MAC Address clone, PPPoE Server

The device is applicable in a vast spectrum applications

-for the automobile industry
-for remote PLC maintenance
-for vending machine applications
-for remote access
-for ATM application
-for wireless network
-for wireless sensor networks
-for M2M applications
-for IOT application
