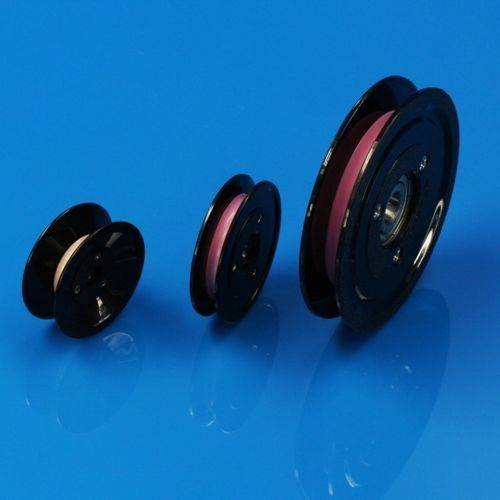

Rotating pulley IN10 series

idlerplasticother materials

Product Description
Innovacera manufactures a range of ceramic wire guide pulleys for coil winding, wire drawing, cable machines, textile machinery and extrusion processes. Standard models are available from stock and custom sizes can be produced on request. The assemblies combine plastic flanges with either 99% alumina polished ceramic inserts or 95% pink aluminum oxide inserts to provide a low-friction, wear-resistant guide surface.

Advantages

• Excellent electrical insulation and high-temperature performance
• Superior wear resistance and smooth polished surface to protect wire coatings
• Durable in harsh processing environments
• Extended service life reduces maintenance intervals
• High stiffness for stable rotation and accurate guidance

Product Specifications
Model | A | B | D | H | R | Weight
IN1001-B03 | 20 | 15 | 3 | 4.5 | 1 | 2g
IN1002-B04 | 28.7 | 20 | 4 | 6.4 | 1 | 6.5g
IN1002-B05 | 28.7 | 20 | 4 | 6.4 | 1 | 6.5g
IN1003-B03 | 30.4 | 15 | 3 | 10 | 1 | 6g
IN1004-B04 | 40 | 20 | 4 | 15 | 1 | 12g
IN1004-B05 | 40 | 20 | 5 | 15 | 1 | 12g
IN1005-B05 | 45.5 | 30 | 5 | 10 | 1 | 25g
IN1005-B06 | 45.5 | 30 | 6 | 10 | 1 | 25g
IN1005-B07 | 45.5 | 30 | 7 | 10 | 1 | 25g
IN1005-B08 | 45.5 | 30 | 8 | 10 | 1 | 25g
IN1006-B06 | 60 | 40 | 6 | 13 | 1.5/0.5 | 40g
IN1006-B07 | 60 | 40 | 7 | 13 | 1.5/0.5 | 40g
IN1006-B08 | 60 | 40 | 8 | 13 | 1.5/0.5 | 40g
IN1006-B10 | 60 | 40 | 10 | 13 | 1.5/0.5 | 40g
IN1006-B12 | 60 | 40 | 12 | 13 | 1.5/0.5 | 40g
IN1007-B05 | 61 | 30 | 5 | 18 | 1 | 35g
IN1007-B06 | 61 | 30 | 6 | 18 | 1 | 35g
IN1007-B07 | 61 | 30 | 7 | 18 | 1 | 35g
IN1007-B08 | 61 | 30 | 8 | 18 | 1 | 35g
IN1008-B10 | 79.2 | 50 | 10 | 15 | 2.5 | 95g
IN1008-B12 | 79.2 | 50 | 12 | 15 | 2.5 | 95g
IN1009-B07 | 80.5 | 40 | 7 | 25 | 1.5 | 60g
IN1009-B08 | 80.5 | 40 | 8 | 25 | 1.5 | 60g
IN1010-B10 | 99.3 | 50 | 10 | 29.5 | 2.5 | 120g
IN1010-B12 | 99.3 | 50 | 12 | 29.5 | 2.5 | 120g

Technical characteristics

• Construction: plastic flanges assembled with ceramic inserts
• Ceramic materials: polished 99% alumina or 95% pink aluminum oxide
• Primary applications: coil winding machines, wire drawing, cable processing, textile machinery, tubing and extrusion lines
• Operating principle: pulley rotates as wire/thread passes over the ring, converting sliding friction to static contact to protect the conductor
• Key properties: electrical insulation, high-temperature resistance, wear resistance, smooth finish, environmental resistance, high stiffness and long service life
• Available models and dimensions: see Product Specifications above (IN10xx-Bxx series)
