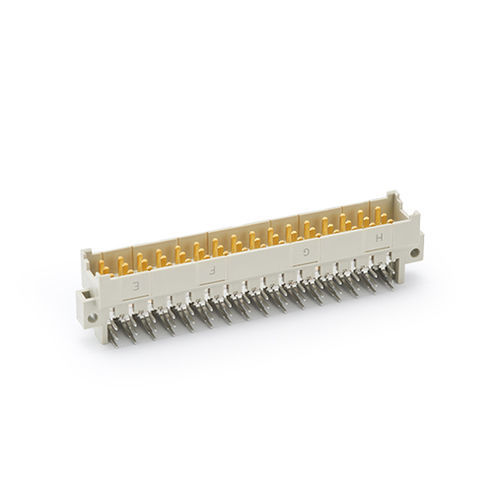

Data connector WBF-048-MSHTvoltagethermoplasticground
Add to favorites
Compare this product
Characteristics
- Type
- data
- Electrical characteristics
- voltage
- Material
- thermoplastic
- Product applications
- ground
- Primary current
6 A
- Voltage
1.5 kV, 2.5 kV
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
lnserts
No.of contact - 48
Termination length - 4.5mm
Contact rows - 3
Contact spacing
3.81mm/5.08mm
Test voltage Ur.m.s - 1.5KV(contact-contact)
- 2.5KV(contact-ground)
lnsulatin resistance - ≥1012Ω
Flammability acc.to UL94 - V0
Material - thermoplastic rsein
Colour - RAL 7032(light grey)
Mating cycles - ≥50
