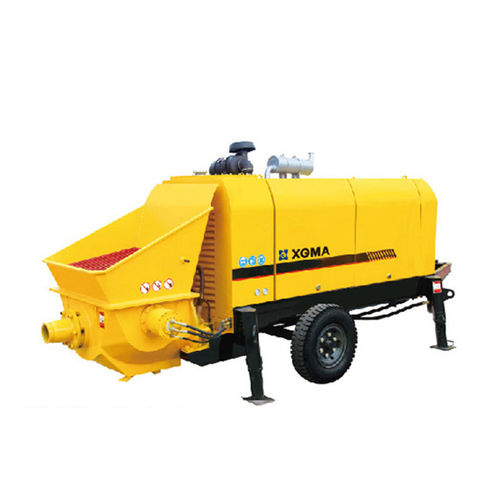

Trailer-mounted concrete pump HBT60S series

for constructionelectric

HBT Motor & DHBT Diesel Engine Concrete pump Hydraulic Pressure: 26-32mpa Hopper Capacity: 0.6m3 On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constant pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps (diesel engine concrete pumps) mainly cover capacity from 30-120m3/h and pressure form 5-20Mpa. Power system We adopt the world-famous brands-Yantai motors and Beide motors of Siemens; We adopt original VOLVO and LOVLO diesel engines as the power of the pumps Main oil pumps The main oil pumps apply German HAWE, Rexroth series and Japanese Kawasaki series. Electric system Main electric elements are from Schneider and LG company, the reliability of the electric-control system is highly improved. Lubrication system Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved. Radiator The radiator is air-cooled type, enabling the machine to work under the allowable highest temperature.
