Lithium iron phosphate energy storage system ESS 500W+1000WH
for solar applicationsoutdooroff-grid

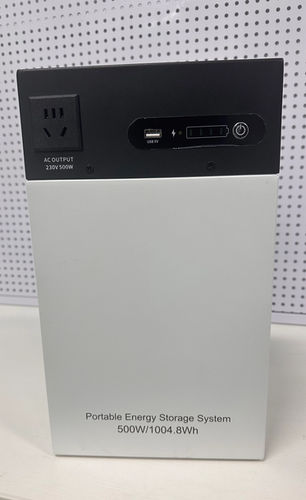

Lithium iron phosphate energy storage system - ESS 500W+1000WH - Ximai Electric (Wuhan) Co.,Ltd - for solar applications / outdoor / off-grid

Add to favorites

Compare this product

Go to the Ximai Electric (Wuhan) Co.,Ltd website for more information

Characteristics

Battery type

lithium iron phosphate

Other characteristics

for solar applications, outdoor, off-grid, compact, with inverter, DC output, AC output, pure sine wave

Voltage

Min.: 185 V

Max.: 230 V

Energy capacity

1,004.8 Wh

Power

500 W
(0.68 hp)

Description

Portable all-in-one inverter and energy storage solution integrating inverter, BMS and LiFePO4 battery for outdoor and emergency use.

Features

Highly integrated inverter and BMS design, compact and portable
Long-life LiFePO4 battery with up to 8000 cycles
Supports dual charging from utility and solar (MPPT range 10-55VDC)
Provides 500W pure sine wave AC output and 5V USB DC output
Multiple interfaces including RS485 communication and dry contact for expansion and management
Comprehensive circuit protection, low operating noise (<40dB)

Operating Conditions

Operating Temperature: -10°C ~ +50°C
Operating Humidity: 5% ~ 95% RH (non-condensing)
Max. Operating Altitude: ≤2000m
Noise Level: <40dB (at 1 meter from the unit)

Technical specifications

Rated AC Output Power: 500W
Battery Rated Capacity: 1004.8 Wh (~1 kWh)
Output Voltage Waveform: Pure Sine Wave
Output Voltage / Frequency: 185~230VAC / 50Hz
Solar Charging Power: 300W Max
Total Charging Power (Utility + Solar): 500W Max
Battery Type: LiFePO4 Battery (3.2Vdc)
Cycle Life: Up to 8000 cycles
DC Output Power: 5W Max
DC Output Socket: 1 pcs 5V 1A USB charger
LED Indicator: 4 pcs SOC indicators, 1 pcs working status indicator
Low DC Warning Point: ≤19%
Low DC Cut-off Voltage: 2.9Vdc
Low DC Warning Return Voltage: >20%
Bulk Charging Voltage: 3.6Vdc
Float Charging Voltage: 3.5Vdc
Max. Pulse Discharge Current: 300A for 1 Sec
Nominal AC Input Voltage: 230Vac
Low Loss Voltage: 90Vac ±7
Low Loss Return Voltage: 100Vac ±7
High Loss Voltage: 280Vac ±7
High Loss Return Voltage: 270Vac ±7
Max. AC Input Voltage: 300Vac
Nominal Input Frequency: 45~65Hz
AC Charging Power: 500W Max
Nominal PV Voltage: 30Vdc
PV Array MPPT Voltage Range: 10Vdc ~ 55Vdc
Max. PV Array Open Circuit Voltage: 56Vdc
Battery Nominal Voltage: 3.2Vdc
Typical Battery Capacity: 314Ah
Max. Charge Current: 220A
Max. Discharge Current: 220A
Operation Voltage Range (battery): 2.9Vdc ~ 3.6Vdc
Working Temperature: -10°C ~ +50°C
Humidity: 5% ~ 95% (no condensation)
Sea Level: ≤2000m
