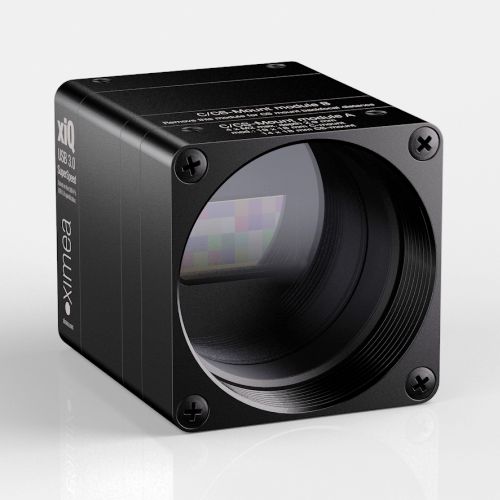

Microscope camera MQ022HG-IM-SM5X5-NIRfor spectroscopyfor UAVsastronomy
Add to favorites
Compare this product
Characteristics
- Applications
- for microscopes, for spectroscopy, for UAVs, astronomy, for endoscopes
- Function
- spark optical emission, monitoring, detection
- Spectrum
- NIR, hyperspectral
- Sensor
- CMOS
- Other characteristics
- fluorescence
Description
Snapshot Mosaic model. Scans: up to 170 cubes/sec
25 Bands, Spectral range 600-950/975 [nm]
Spatial resolution: approx. 409 × 217 pixels
Smallest and lightest Hyperspectral camera: 26 x 26 x 31 mm, 32g
1.6 Watt and overall SWAP are ideal for Embedded vision systems
USB3 Vision Compliant
Snapshot Mosaic Hyperspectral imaging (HSI) camera smallest sensor
Applications: Precision Agriculture, Remote Sensing, Mineralogy (mining), DNA sequencers/flow cytometers, Medical Imaging (cancer cells inspection), Endoscopy, Fluorescence, Ophthalmology, Skin tones/tissue analysis, Material and Life science microscopy, Terrestrial/maritime earth observation, Space exploration, Astronomy, Environmental Monitoring, Security (industrial gas leaks, forensics), Spectroscopy instrumentation, Optical sorting (plastic, ceramic, glass, pharmaceutical), Food inspection (quality grading), Defect detection, UAV
