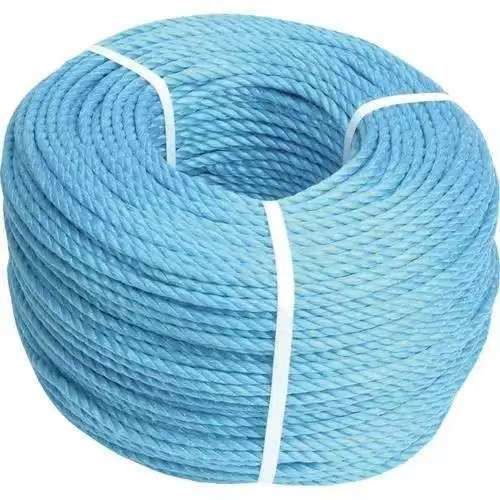

Dynamic rope

polyamidenylonsynthetic fiber

Product Overview
The 3-Strand Polyamide (Nylon 66) Mooring Rope is engineered for maritime mooring, towing and salvage operations where high impact resistance, controlled elasticity and shock absorption are required. Manufactured from high‑tenacity Nylon 66 fibers, the rope provides a balance of strength, elongation and abrasion resistance suitable for dynamic loads.

Key Benefits

• Impact resistance and shock absorption via controlled elastic deformation.
• High resilience: returns to original length after load removal (100% spring-back at ~3% elongation).
• Excellent abrasion resistance for high-friction contact points.
• Flex fatigue resistance: retains properties after repeated bending and flexing.
• Reliable performance in dynamic mooring, towing and salvage scenarios.

Why Nylon Excels in Dynamic Applications

• Shock Absorption: absorbs impact energy through elastic deformation.
• High Resilience: rapid spring-back after load removal (100% spring-back at ~3% elongation).
• Superior Abrasion Resistance: resists surface wear and fiber separation.
• Flex Fatigue Resistance: maintains integrity after repeated flexing.
• Impact Resistance: handles sudden load spikes safely within design limits.
• Proven Reliability: long-established use in maritime operations.

The Engineering Behind Polyamide (Nylon) Rope
The rope is produced from Nylon 66 fibers with a highly organized molecular structure delivering high tensile strength (approx. 700–900 MPa). Fibers are selected for controlled elasticity (shock absorption), load-bearing capacity and resistance to environmental exposure. Typical melting point ~215°C; material properties remain consistent across a wide operational temperature range.

3-Strand Laid Construction
Traditional 3-strand laid construction: many nylon fibers twisted into strands, then three strands laid together (right- or left-hand lay to customer specification). This construction offers simplicity, strength, flexibility, controlled elasticity for shock absorption, durability and easy splicing/repair.

Manufacturing and Quality Control
Production includes premium high‑tenacity Nylon 66 fiber selection, controlled fiber preparation, precise twist application, strand testing (breaking load, elongation, diameter), continuous diameter and tension control during laying, and final tests: breaking load, diameter/weight verification, elongation/elasticity testing, visual inspection and documentation/test reports.

Application Scenarios
Suitable for ship mooring (small to very large vessels depending on diameter), towing, salvage and other high-impact maritime uses where dynamic load absorption is critical.

Standard Sizes and Performance Data
Diameter (mm) | Circumference (inches) | Weight (kg/200m) | Breaking Load (kN) | Breaking Load (tons) | Typical Applications
4 | 1/2 | 2.1 | 3.15 | 0.32 | Small utility lines
6 | 3/4 | 4.5 | 7.35 | 0.75 | Small vessel auxiliary lines
8 | 1 | 8 | 13.2 | 1.35 | Small-medium vessel mooring
10 | 1-1/4 | 12.4 | 20.4 | 2.08 | Small-medium vessel mooring
12 | 1-1/2 | 17.8 | 29.4 | 3 | Medium vessel mooring
16 | 2 | 31.6 | 52 | 5.31 | Medium vessel mooring
20 | 2-1/2 | 49 | 81.4 | 8.31 | Medium-large vessel mooring
24 | 3 | 71 | 118 | 12.04 | Large vessel mooring
28 | 3-1/2 | 97 | 155 | 15.82 | Large vessel mooring
32 | 4 | 126 | 196 | 20 | Large vessel mooring
40 | 5 | 198 | 294 | 30 | Very large vessel mooring
48 | 6 | 284 | 412 | 42.04 | Very large vessel mooring
56 | 7 | 386 | 549 | 56.02 | Very large vessel mooring
60 | 7-1/2 | 442 | 626 | 63.88 | Very large vessel mooring

Material Specifications
Property | Specification | Test Method | Standard
Fiber Material | Polyamide 66 (Nylon 66) | Material analysis | ISO 1209
Fiber Grade | High-tenacity nylon fibers | Tensile testing | ASTM D6775
Fiber Density | 1.12–1.14 g/cm³ | Density measurement | ISO 1183
Melting Point | 215°C | Thermal analysis | ISO 11357
Construction | 3-strand laid rope | Visual inspection | ISO 1209
Lay Direction | Right-hand or left-hand (customer specified) | Visual inspection | ISO 1209
Rope Diameter Tolerance | ±5–10% of nominal diameter | Micrometer measurement | ISO 1209
Weight Tolerance | ±5% of nominal weight per 200m | Weighing scale | ISO 1209
Color | White, natural, or custom colors available | Visual inspection | ISO 1209
Surface Finish | Smooth, uniform surface | Visual inspection | ISO 1209

Performance Specifications
Property | Specification | Test Method | Standard
Minimum Breaking Load | As specified per diameter | Tensile testing to failure | ISO 1209
Elongation at Break | 35–40% (typical) | Tensile testing | ISO 1209
Elongation at 50% MBL | 15–20% (high-stretch) | Load testing | ISO 1209
Resilience at 3% Elongation | 100% spring-back | Elasticity testing | ISO 1209
Abrasion Resistance | Superior resistance to surface wear | Abrasion testing | ISO 5470
Chemical Resistance | Good resistance to most chemicals | Chemical immersion testing | ISO 1419
Water Absorption | 2–4% weight gain after 24-hour water immersion | Water immersion testing | ISO 1419
Flotation | Rope sinks (non-floating) | Flotation testing | Custom method
Temperature Range | -20°C to +80°C (-4°F to +176°F) | Material specification | ISO 1209
Maximum Continuous Temperature | 80°C | Material specification | ISO 1209
Service Life | 4–6 years (typical) | Field experience | Industry standard

Elongation Characteristics (Critical for Dynamic Applications)
Load Level | Elongation (%) | Resilience | Significance
3% Load | 3% | 100% | Complete recovery
10% MBL | 4–5% | 95%+ | Minimal permanent deformation
25% MBL | 8–10% | 90%+ | Stable load distribution
50% MBL | 15–20% | 80%+ | Significant elasticity
75% MBL | 25–30% | 70%+ | Controlled deformation
At Breaking Load | 35–40% | — | Final elongation before failure

Standards and Certification
Complies with international standards including ISO 1209, ISO 1419, ISO 5470 and relevant EN norms for mooring systems. Ropes are certified and tested with documented test reports (breaking load, elongation and inspection results) and meet classification society and major port requirements.

Notes on Selection and Use
Select diameter according to vessel size and application (see table). Perform regular visual inspections for damage, verify diameter and weight when required, and replace ropes showing wear or damage. Test reports and documentation accompany shipments.
