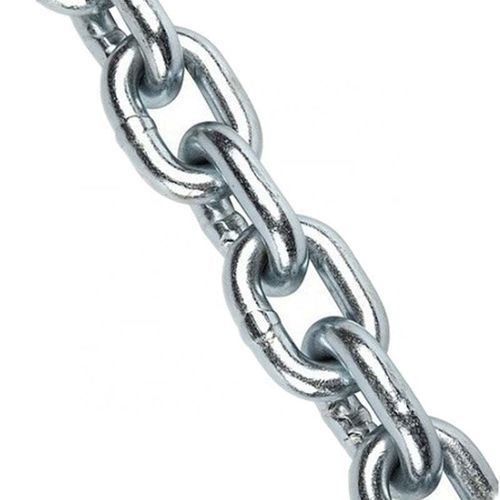

Anchor chain 43

towingsteelzinc-plated steel

Description
Grade 43 mooring chain supplied in half-drum coils with electro-galvanized finish.

• Electronically welded chain
• Finish: electro-galvanized (self color)
• Meets or exceeds NACM & ASTM standards (A391 & A413)
• High strength-to-weight ratio
• NOT to be used for overhead lifting
• Never exceed published working load limit (WLL)
• Proof tested and certified

Introduction
Grade 43 chain is a high-test steel chain commonly used for mooring, towing and general binder applications. It offers higher tensile strength and working load limit compared with Proof Coil (Grade 30). Binder chains are typically fitted with clevis grab hooks on each end. Grade 43 is not approved for overhead lifting; use only within the published WLL.

Parameter
Grade of chain: NACM (National Association of Chain Manufacturers) & ASTM (American Society for Testing and Materials) classification; higher grade indicates higher WLL for the same chain size.
Working Load Limit (WLL): Rated capacity — maximum working load in direct tension for an undamaged straight length of chain.
Proof test: Minimum tensile force applied during manufacturing as an integrity test; not to be used for service or design criteria.
Minimum breaking force: Minimum measured breaking load during manufacturing tests; not a design guarantee for service conditions.
Overhead lifting: Lifting that could place a load where falling would cause injury or damage. Grade 43 chains are NOT approved for overhead lifting.

Dimensions & Mechanical Data (table)
Size (mm) | D +/- (mm) | Inside Length A (mm) | A +/- (mm) | Outside Width B (mm) | B +/- (mm) | Working Load (kg) | Test Load (N) | Breaking Load (N) | Weight Per M (kg)
3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15
4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27
5 | 0.5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43
6 | 0.5 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63
7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86
8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1
9 | 0.5 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41
10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75
11 | 1 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11
12 | 1 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55
13 | 1 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95
16 | 1 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45
18 | 1 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65
19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25
20 | 1 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7
22 | 1 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55
25 | 1 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9
28 | 1 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9
32 | 1 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2

Standards
Name: Grade 43 Chain Electro Galvanized Finish Half Drum
MOQ: 100 Meters
Package: Carton + Steel Pallet

Features / Technical specifications

• Grade: Grade 43 (High Test / Binder chain)
• Finish: Electro-galvanized (self color)
• Manufacture: Electronically welded; proof tested and certified
• Standards compliance: Meets or exceeds NACM & ASTM (A391 & A413)
• Usage limitation: Not for overhead lifting; do not exceed published WLL
• Available sizes: 3 mm to 32 mm (see dimensions & mechanical data)
• Minimum order quantity: 100 meters
• Packaging: Carton plus steel pallet
