Demarcation chain

anchorsignalingsteel

Product overview

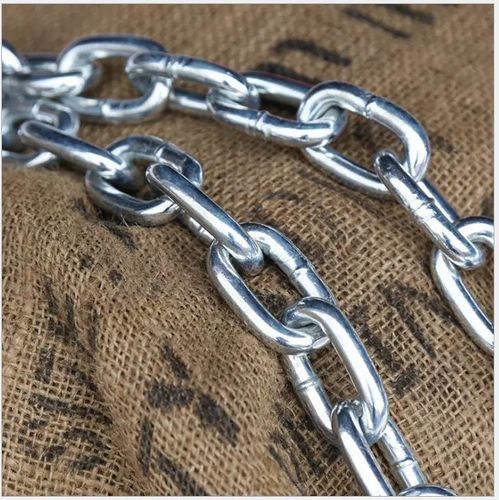

Medium link chain designed for counterweight and general industrial applications. CE certified and compliant with relevant British standards. Typical uses include decoration, safety protection, fencing and counterweight systems. Available finishes: hot-dip galvanized or blackened. Link diameters range from 1/8" (3.2 mm) to 1" (25.4 mm). Mechanical and weight data provided to support specification and selection.

Technical parameters

• 1/8 (3.2 mm): L 20 mm, W 12 mm — Test load 200 kg, Breaking load 400 kg — Net wt per 200 ft: B.F. 10.4 kg / H.D.G. 11 kg
• 5/32 (4 mm): L 23 mm, W 15 mm — Test load 300 kg, Breaking load 600 kg — Net wt per 200 ft: B.F. 17.4 kg / H.D.G. 18 kg
• 3/16 (4.7 mm): L 25 mm, W 18 mm — Test load 400 kg, Breaking load 800 kg — Net wt per 200 ft: B.F. 24.4 kg / H.D.G. 25 kg
• 7/32 (5.5 mm): L 26 mm, W 19 mm — Test load 550 kg, Breaking load 1100 kg — Net wt per 200 ft: B.F. 34 kg / H.D.G. 35 kg
• 1/4 (6.35 mm): L 26 mm, W 23 mm — Test load 750 kg, Breaking load 1500 kg — Net wt per 200 ft: B.F. 48.8 kg / H.D.G. 50 kg
• 5/16 (7.94 mm): L 32 mm, W 29 mm — Test load 1200 kg, Breaking load 2400 kg — Net wt per 200 ft: B.F. 76 kg / H.D.G. 78 kg
• 3/8 (9.5 mm): L 35 mm, W 35 mm — Test load 1700 kg, Breaking load 3400 kg — Net wt per 200 ft: B.F. 111 kg / H.D.G. 114 kg
• 7/16 (11.11 mm): L 38 mm, W 38 mm — Test load 2300 kg, Breaking load 4600 kg — Net wt per 200 ft: B.F. 154 kg / H.D.G. 158 kg
• 1/2 (12.7 mm): L 50 mm, W 45.5 mm — Test load 3000 kg, Breaking load 6000 kg — Net wt per 200 ft: B.F. 194 kg / H.D.G. 200 kg
• 5/8 (15.8 mm): L 60 mm, W 56.7 mm — Test load 4700 kg, Breaking load 9400 kg — Net wt per 200 ft: B.F. 303 kg / H.D.G. 312 kg
• 3/4 (19 mm): L 76 mm, W 69 mm — Test load 6800 kg, Breaking load 13 600 kg — Net wt per 200 ft: B.F. 432 kg / H.D.G. 445 kg
• 7/8 (22.2 mm): L 90 mm, W 80 mm — Test load 9250 kg, Breaking load 18 500 kg — Net wt per 200 ft: B.F. 586 kg / H.D.G. 603 kg
• 1 (25.4 mm): L 105 mm, W 95 mm — Test load 12 150 kg, Breaking load 24 300 kg — Net wt per 200 ft: B.F. 770 kg / H.D.G. 792 kg

Standards
CE certification; compliant with relevant British standards.

Characteristics / Technical specifications

• Product name: Medium link chain (counterweight)
• Certification: CE (compliant with British standards)
• Main applications: decoration, safety protection, fencing, counterweight and general industrial use
• Available finishes: hot-dip galvanized (H.D.G.) and blackened (B.F.)
• Link diameter range: 1/8 (3.2 mm) to 1 (25.4 mm)
• Dimensions provided: D (in/mm), L (mm), W (mm)
• Mechanical data: test load and breaking load (kg) for each size
• Weight data: net weight per 200 ft for both black finish and hot-dip galvanized finish
• For full specification sheets, MOQ and bulk pricing contact sales
