D lifting shackle

Overview

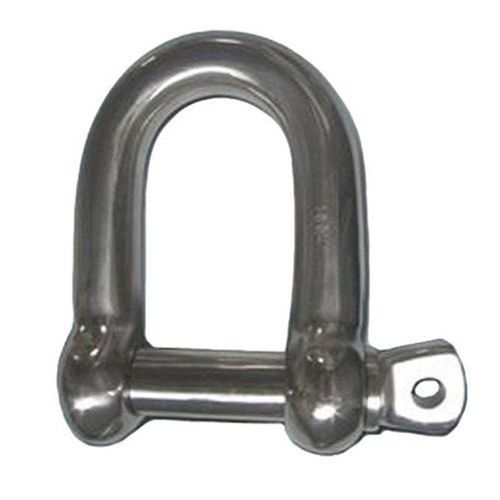

European pattern Dee (D) shackles designed for general lifting, rigging and load-securing applications. Commercial-pattern pin and body are manufactured from the same diameter for consistent performance. Produced from high-grade raw materials in accordance with international quality standards. Available in standard and custom sizes.

Product features

• Forged – Quenched and Tempered.
• Finishes: Galvanized, Zinc Plated or Self Colored.
• Working Load Limit (S.W.L.) permanently shown on every shackle.

Parameter
Header: Size | D | d | a | c | b | S.W.L. | Weight per 100 pcs (Kg)

• M5 — D: 5, d: 5, a: 10, c: 19, b: 11, S.W.L.: 80, Weight per 100 pcs: 1.9 Kg
• M6 — D: 6, d: 6, a: 13, c: 25, b: 14, S.W.L.: 100, Weight per 100 pcs: 3.4 Kg
• M8 — D: 8, d: 8, a: 16, c: 32, b: 18, S.W.L.: 200, Weight per 100 pcs: 7 Kg
• M10 — D: 10, d: 10, a: 19, c: 38, b: 20, S.W.L.: 320, Weight per 100 pcs: 13 Kg
• M11 — D: 11, d: 11, a: 22, c: 44, b: 23, S.W.L.: 400, Weight per 100 pcs: 16.5 Kg
• M12 — D: 12, d: 12, a: 25, c: 51, b: 26, S.W.L.: 520, Weight per 100 pcs: 24 Kg
• M16 — D: 16, d: 16, a: 32, c: 64, b: 33, S.W.L.: 800, Weight per 100 pcs: 50 Kg
• M20 — D: 20, d: 20, a: 38, c: 76, b: 40, S.W.L.: 1100, Weight per 100 pcs: 80 Kg
• M22 — D: 22, d: 22, a: 44, c: 89, b: 50, S.W.L.: 1500, Weight per 100 pcs: 130 Kg
• M25 — D: 25, d: 25, a: 51, c: 100, b: 57, S.W.L.: 2100, Weight per 100 pcs: 200 Kg
• M28 — D: 28, d: 28, a: 57, c: 115, b: 68, S.W.L.: 3000, Weight per 100 pcs: 300 Kg
• M32 — D: 32, d: 32, a: 64, c: 127, b: 73, S.W.L.: 3500, Weight per 100 pcs: 430 Kg
• M38 — D: 38, d: 38, a: 76, c: 152, b: 85, S.W.L.: 5000, Weight per 100 pcs: 675 Kg
• M45 — D: 45, d: 45, a: 90, c: 180, b: 96, S.W.L.: 7000, Weight per 100 pcs: 1250 Kg
• M50 — D: 50, d: 50, a: 102, c: 200, b: 108, S.W.L.: 8000, Weight per 100 pcs: 1750 Kg

Standards
Manufactured to comply with international quality and safety standards. Relevant certificates and test reports available on request.

Technical specifications

• Material and treatment: Forged, quenched and tempered.
• Finishes available: Galvanized, Zinc Plated or Self Colored.
• Marking: Working Load Limit (S.W.L.) permanently shown on every shackle.
• Size range and key dimensions (selection):
  • M5 — D 5, d 5, a 10, c 19, b 11, S.W.L. 80, Weight/100 pcs 1.9 Kg
  • M6 — D 6, d 6, a 13, c 25, b 14, S.W.L. 100, Weight/100 pcs 3.4 Kg
  • M8 — D 8, d 8, a 16, c 32, b 18, S.W.L. 200, Weight/100 pcs 7 Kg
  • M10 — D 10, d 10, a 19, c 38, b 20, S.W.L. 320, Weight/100 pcs 13 Kg
  • M11 — D 11, d 11, a 22, c 44, b 23, S.W.L. 400, Weight/100 pcs 16.5 Kg
  • M12 — D 12, d 12, a 25, c 51, b 26, S.W.L. 520, Weight/100 pcs 24 Kg
  • M16 — D 16, d 16, a 32, c 64, b 33, S.W.L. 800, Weight/100 pcs 50 Kg
  • M20 — D 20, d 20, a 38, c 76, b 40, S.W.L. 1100, Weight/100 pcs 80 Kg
  • M22 — D 22, d 22, a 44, c 89, b 50, S.W.L. 1500, Weight/100 pcs 130 Kg
  • M25 — D 25, d 25, a 51, c 100, b 57, S.W.L. 2100, Weight/100 pcs 200 Kg
  • M28 — D 28, d 28, a 57, c 115, b 68, S.W.L. 3000, Weight/100 pcs 300 Kg
  • M32 — D 32, d 32, a 64, c 127, b 73, S.W.L. 3500, Weight/100 pcs 430 Kg
  • M38 — D 38, d 38, a 76, c 152, b 85, S.W.L. 5000, Weight/100 pcs 675 Kg
  • M45 — D 45, d 45, a 90, c 180, b 96, S.W.L. 7000, Weight/100 pcs 1250 Kg
  • M50 — D 50, d 50, a 102, c 200, b 108, S.W.L. 8000, Weight/100 pcs 1750 Kg
