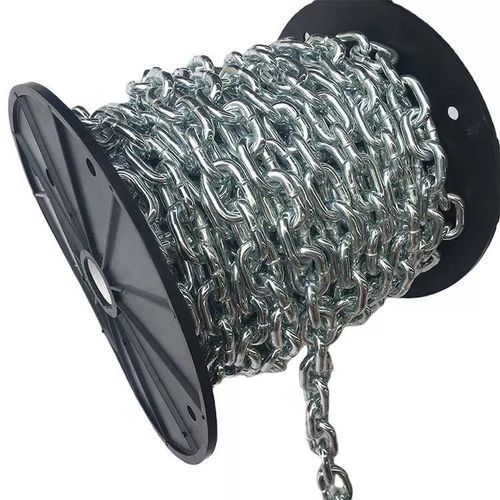

Short Link Chain (Counterweight) TOPONE CHAIN — short-link chain intended for counterweight and fishing applications, supplied in multiple diameters and finishes.

Category
Fishing Chain

Parameter
LINK SPECIFICATION | D (IN) | D (MM) | L (MM) | W (MM) | TEST LOAD (KG) | BREAKING LOAD (KG) | NETWT PER 200FT (KG) B.F. | H.D.G.
1/8 | 3.2 | 16 | 12 | 200 | 400 | 11.4 | 11.74
5/32 | 4 | 18.5 | 14.5 | 300 | 600 | 18.6 | 19
3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.2 | 27
7/32 | 5.5 | 20 | 19 | 550 | 1100 | 36.8 | 38
1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50 | 51.5
5/16 | 7.94 | 26 | 26 | 1200 | 2400 | 80 | 82.4
3/8 | 9.5 | 28 | 32 | 1700 | 3400 | 122 | 125.7
7/16 | 11.11 | 33 | 36 | 2300 | 4600 | 164 | 169
1/2 | 12.7 | 39 | 43 | 3000 | 6000 | 210 | 216
5/8 | 15.8 | 45 | 53 | 4700 | 9400 | 334 | 344
3/4 | 19 | 55 | 63 | 6800 | 13600 | 485 | 499
7/8 | 22.2 | 64 | 74 | 9250 | 18500 | 656 | 675
1 | 25.4 | 73 | 84 | 12150 | 24300 | 870 | 896

Standards
(No explicit standards text available on the page.)

Features / Technical specifications

• Model: Short Link Chain (Counterweight)
• Brand: TOPONE CHAIN
• Category: Fishing Chain
• Available link diameters: 1/8" up to 1" (3.2 mm to 25.4 mm)
• Dimensions provided per size: D (in/mm), L (mm), W (mm)
• Performance data provided per size: Test load (kg), Breaking load (kg)
• Net weight per 200 ft provided for both B.F. (Bare Finish) and H.D.G. (Hot-Dip Galvanized) finishes (kg)
• Product images available on the product page illustrating the chain and parameter diagram
