Anchor chain Grade 43

towingsteelzinc-plated steel

Product Overview

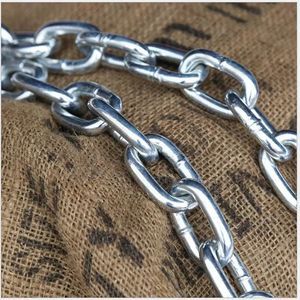

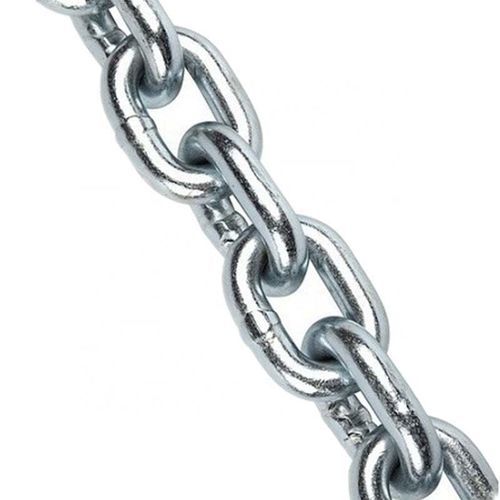

Grade 43 mooring chain with electro-galvanized finish in half drum configuration. Electronically welded chain supplied with clevis grab hooks on binder chain ends. Meets or exceeds NACM and ASTM (A391 & A413) standards. Proof tested and certified. NOT for overhead lifting. NEVER exceed published working load limit (WLL).

Introduction
Grade 43 is a high-test steel binder chain offering approximately 50% higher working load limit than Proof Coil (Grade 30). Commonly used for mooring, towing and log binder applications where high strength-to-weight is required. Not approved for overhead lifting. Binder chains are typically fitted with clevis grab hooks at each end for quick connection.

Parameter / Definitions

• Grade of Chain: Classification by NACM and ASTM; higher grade indicates greater WLL for the same chain size.
• Working Load Limit (WLL): Maximum recommended working load in direct tension for an undamaged straight length of chain.
• Proof Test: Manufacturing test force applied to verify integrity during production; not a design criterion.
• Minimum Breaking Force: Acceptance test result indicating minimum breaking strength; not to be used for design calculations.
• Overhead Lifting: Any lifting that would position a freely suspended load where a drop could cause injury or damage; Grade 43 chain is NOT approved for this use.

Size / Mechanical Data Table
Header: Size (mm) | D (mm +/-) | Inside Length A (mm +/-) | Outside Width B (mm +/-) | Working Load (N) | Test Load (N) | Breaking Load (N) | Weight Per M (kg)
3 | D:26 (+/-0.5) | A:12 (+/-1.2) | B:55 (+/-0.6) | 1050 | 3200 | 3200 | 0.15
4 | D:32 (+/-0.5) | A:16 (+/-1.5) | B:100 (+/-0.8) | 2000 | 6000 | 6000 | 0.27
5 | D:35 (+/-0.5) | A:20 (+/-1.8) | B:160 (+/-1.0) | 3150 | 10000 | 10000 | 0.43
6 | D:42 (+/-0.5) | A:24 (+/-2.0) | B:224 (+/-1.2) | 4500 | 14000 | 14000 | 0.63
7 | D:49 (+/-0.5) | A:28 (+/-2.5) | B:300 (+/-1.4) | 6000 | 18000 | 18000 | 0.86
8 | D:52 (+/-0.5) | A:32 (+/-2.5) | B:400 (+/-1.6) | 8000 | 25000 | 25000 | 1.1
9 | D:59 (+/-0.5) | A:36 (+/-3.0) | B:530 (+/-1.8) | 10500 | 32000 | 32000 | 1.41
10 | D:65 (+/-1.0) | A:40 (+/-3.2) | B:630 (+/-2.0) | 12500 | 40000 | 40000 | 1.75
11 | D:72 (+/-1.0) | A:44 (+/-3.4) | B:790 (+/-2.0) | 15800 | 47500 | 47500 | 2.11
12 | D:78 (+/-1.0) | A:48 (+/-3.6) | B:940 (+/-2.3) | 18800 | 56500 | 56500 | 2.55
13 | D:82 (+/-1.0) | A:52 (+/-4.0) | B:1000 (+/-2.5) | 21200 | 63000 | 63000 | 2.95
16 | D:100 (+/-1.0) | A:64 (+/-5.0) | B:1600 (+/-3.2) | 33000 | 100000 | 100000 | 4.45
18 | D:113 (+/-1.0) | A:70 (+/-5.2) | B:2120 (+/-3.2) | 42300 | 127000 | 127000 | 5.65
19 | D:119 (+/-1.0) | A:72 (+/-5.6) | B:2370 (+/-3.4) | 47300 | 142000 | 142000 | 6.25
20 | D:120 (+/-1.0) | A:75 (+/-6.0) | B:2500 (+/-3.8) | 50000 | 160000 | 160000 | 7.00
22 | D:127 (+/-1.0) | A:82 (+/-6.0) | B:3170 (+/-4.0) | 63300 | 190000 | 190000 | 8.55
25 | D:140 (+/-1.0) | A:88 (+/-6.6) | B:4090 (+/-4.2) | 81700 | 245000 | 245000 | 10.9
28 | D:152 (+/-1.0) | A:96 (+/-7.0) | B:6000 (+/-4.7) | 120000 | 300000 | 300000 | 13.9
32 | D:171 (+/-1.0) | A:108 (+/-7.8) | B:8000 (+/-5.2) | 160000 | 400000 | 400000 | 18.2

Standards & Packaging

• Name: Grade 43 Chain Electro Galvanized Finish Half Drum
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical / Specifications

• Product type: Grade 43 binder / mooring chain, half drum style
• Manufacture: Electronically welded chain
• Finish: Electro-galvanized, self color
• Standards: Meets or exceeds NACM and ASTM (A391 & A413)
• Certification: Proof tested and certified
• Application restrictions: Not for overhead lifting; do not exceed published WLL
• Typical supply: Supplied with clevis grab hook on each end for binder chains
• MOQ and packing: 100 Meters; Carton + Steel Pallet
• Mechanical data: Detailed size vs D / A / B, Working Load, Test Load, Breaking Load and Weight per meter in the table above
