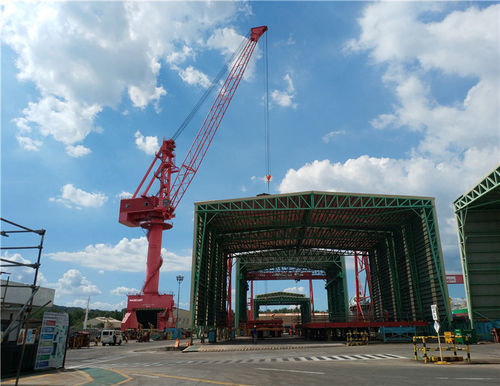

Level luffing crane

fixedharborfor shipyards

• Capacity: 5~550t, can be 2~3 hooks • Outreach: 15~120m, class A5/A6/A7/A8 • Rail Gauge: 6~12m, customized design • Lifting Height: Up to 120m/50m above Rail • Wire rope or rack luffing or double boom Application • Dry dock, port, material storage yard • For ship repair/building, material handling • Run along the rail, covering dock and wharf Advantages • Lightweight body, Low purchase cost • Low power consumption & operating cost • With hydraulic clamp to prevent sliding • With anti-tipping to prevent typhoon Features 1. This kind of crane is mostly used in shipyards, wharfs, loading and unloading places. 2. The revolving part of the crane is mounted on the portal base. 3. The portal base is actually the load-bearing part of the crane. 4. Traveling mechanism is installed under the portal base, which can travel on the track set on the ground. 5. The rotating part is equipped with a boom and lifting, rotating and luffing mechanism. 6. Four mechanism work together to complete the installation of equipment or to carry out cargo loading and unloading.
