Infrared camera thermography system

Product overview

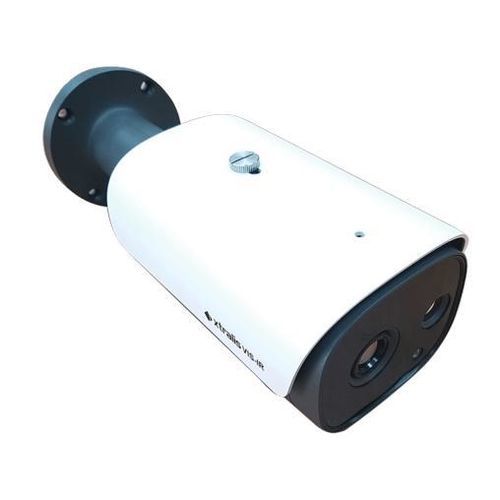

The Xtralis VIS-IR Failsafe Thermography Detector (FTD) is a bi-spectral (infrared & visual) smart edge device engineered for early-warning heat and fire detection in harsh industrial environments where conventional smoke detectors are ineffective. The FTD continuously monitors for fault conditions and reports them via an onboard failsafe relay. It integrates with industry-standard fire alarm control panels (FACPs) and supports automatic switching between IR and Visual modes for optimized detection.

Model Numbers
FTD-2216-S, FTD-4231-S, FTD-8865-S

Features

• Bi-spectral imaging: IR and visual feeds
• On-board pre-alarm, alarm and fail-safe fault relay outputs
• Sensor resolution: 384 x 288 pixels
• Selectable detection area: 1x1, 3x3 or 5x5
• Detection temperature range: -5°C to 450°C
• Fixed temperature and Rate-of-Rise pre-alarms and alarms
• Three lens / field-of-view options
• One input (Reset)
• Tri-colour front LED for status; remote LED output
• Simple, user-friendly pluggable connections and terminals
• IP66 ingress protection
• Operation on 24 VDC
• Vehicle-discrimination algorithm to reduce false alarms
• Fusion of IR and visual feeds for improved detection accuracy
• Camera cover fault detection and diagnostics

Applications

• Waste management and recycling facilities
• Food and beverage processing plants
• Industrial production and storage sites
• Transportation tunnels and infrastructure

Certifications

• CNPP

Service & Support
VIS-IR Software Management (ViSM) Setup V0.10.0.0 is available. Software packages, installation manuals, engineering specifications and application notes are provided to support integration, configuration and maintenance.

Resources (document titles)

• Xtralis VIS-IR Thermography Detector Product Bulletin
• Xtralis VIS-IR Thermography Detector Technical Data Sheet
• Xtralis VIS-IR Thermography Detector Product Guide
• Xtralis VIS-IR Thermography Detector Installation Sheet
• Xtralis VIS-IR Thermography Detector Engineering Specifications
• Xtralis VIS-IR Thermography Detector Black Body Application Note
• Xtralis VIS-IR Vehicle Discrimination Algorithm Application Note
• Xtralis VIS-IR Thermography Detector Product Brochure
• Xtralis VIS-IR Theoretical Spot Size Ratio Calculator
• Xtralis VIS-IR Theoretical Spot Size Calculator User Guide
• ViSM Setup (software package)
• Xtralis VIS-IR Thermography Detector Declaration of Conformity
• CNPP Certificate for Xtralis VIS-IR Thermography Detector

Technical specifications

• Imaging: Bi-spectral (Infrared and Visual)
• Sensor resolution: 384 x 288 pixels
• Detection area options: 1x1, 3x3, 5x5
• Temperature range: -5°C to 450°C
• Alarm logic: Fixed temperature and Rate-of-Rise
• Outputs: Pre-alarm, alarm and fail-safe fault relays
• Lenses: 3 lens / FOV choices
• Input: 1 (Reset)
• Indicators: Tri-colour front LED; remote LED output
• Connectivity: Pluggable connections and terminals for easy installation
• Power: 24 VDC
• Ingress protection: IP66
• Algorithms: Vehicle discrimination; feed fusion (IR + visual)
• Diagnostics: Camera cover fault detection
