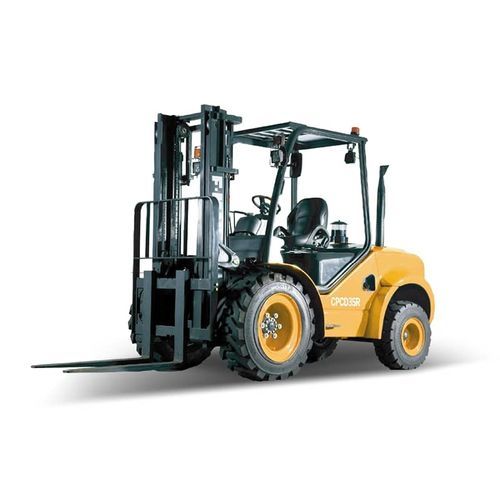

Diesel forklift CPCD35R

ride-onindustrialmining and quarrying

Overview
The FMAN CPCD35R 3.5-ton rough-terrain forklift is engineered for outdoor heavy-duty handling on uneven or loose surfaces. Its reinforced frame and optimized powertrain are adapted to operate reliably in construction sites, quarries, agricultural yards and port areas while maintaining stable lifting and traction performance.

Key specifications
ITEM | UNIT | CPCD35R
Rated load — kg — 3500
Self weight (without load) — kg — 5240
Engine model — — YANMAR 4TNE98
Rated output — kW/r.p.m — 42.1/2300
Rated torque — Nm/r.p.m — 177.6–196.3/1700±100
Overall dimensions (without forks) — mm — 3047 × 1610 × 2285

Features

• 3.5-ton rated load capacity for handling industrial and construction materials.
• Reinforced frame design to improve impact resistance on gravel, mud and uneven terrain.
• Optimized transmission for efficient power delivery and improved climb/traction performance.
• Lifting system with maximum lifting height of 3000 mm for multi-level stacking and loading/unloading.
• Stable lifting control to reduce cargo sway and increase placement accuracy.
• Compact maneuverability with overall length (including forks) 3660 mm and width 1260 mm for operation in narrow passages.

Technical specifications

• Model: CPCD35R
• Brand: FMAN
• Rated load: 3500 kg
• Self weight (table): 5240 kg
• Machine weight examples: 4845 kg (including battery) / 4615 kg (excluding battery)
• Engine model: YANMAR 4TNE98
• Rated output: 42.1 kW @ 2300 r.p.m.
• Rated torque: 177.6–196.3 Nm @ 1700±100 r.p.m.
• Maximum lifting height: 3000 mm
• Overall dimensions (without forks): 3047 × 1610 × 2285 mm
• Overall length (including forks): 3660 mm
• Overall width: 1260 mm

Applications

• Material handling on construction sites
• Logistics in quarries and mining sites
• Agricultural and livestock yard handling
• Goods movement in port yards
• Outdoor industrial logistics
