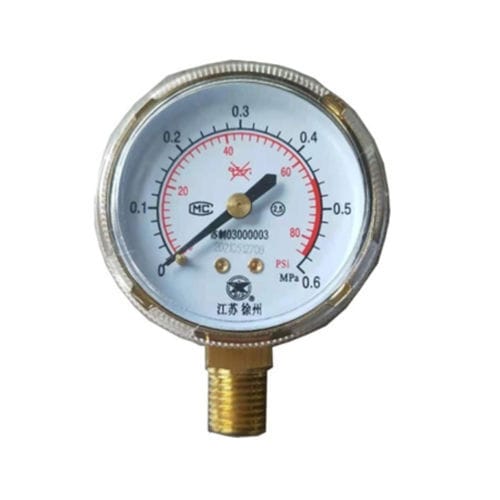

Relative pressure gauge YO-50dialthreadedNPT 1/4
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded
- Process connection
- NPT 1/4
- Material
- stainless steel, brass, steel
- Technology
- Bourdon tube
- Applications
- process
- Other characteristics
- compact
- Pressure
Min.: 0 bar
(0 psi)Max.: 300 bar
(4,351.13 psi)- Precision
2.5 %
- Dial diameter
Min.: 25 mm
(1 in)Max.: 50 mm
(2 in)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Product name
Note
Short description
Available measurement ranges / variants (selection)
Variants / materials
Dial diameter / formats
Further notes
Characteristics / specifications
- Pressure gauge head YO-50 (series available in multiple measurement ranges)
Note
- Contact with oily or greasy substances is strictly prohibited.
Short description
- Industrial pressure gauge head series (YO-50) offered in several constructions (case in iron or stainless steel; some variants with rubber coating or ABS housing).
- Suitable for a wide range of pressure scales (see available ranges below).
- Mounting orientation: radial.
- Operating environment: -20℃ to +60℃; relative humidity not exceeding 85%.
Available measurement ranges / variants (selection)
- 0 ~ 0.1 MPa
- 0 ~ 0.16 MPa
- 0 ~ 0.25 MPa
- 0 ~ 0.6 MPa
- 0 ~ 1 MPa
- 0 ~ 1.2 MPa
- 0 ~ 2.5 MPa
- 0 ~ 4 MPa
- 0 ~ 16 MPa
- 0 ~ 25 MPa
- 0 ~ 25 bar
- 0 ~ 100 bar
- 0 ~ 250 bar
- 0 ~ 300 bar
- 0 ~ 2000 PSI
- 0 ~ 3000 PSI (other PSI scales/variants listed)
Variants / materials
- Standard: case iron, movement brass, connection brass.
- Stainless steel version: case 316, movement 316L, connection 316L (for more corrosion-resistant applications).
- Special alloys for aggressive media: e.g. Bourdon tube/connection in Hastelloy on certain variants (for chlorine/chloride service noted).
- Housing finish: titanium-gold or metallic finishes, or black case with rubber overcoat on specific variants; some compact versions use ABS housings.
Dial diameter / formats
- Typical dial diameter for YO-50 variants: Ø 50 mm.
- Smaller versions (e.g. YO-30): Ø 36 mm.
- Very compact models (specific YO-30 / YO-40 versions): Ø 25 mm or Ø 40 mm.
Further notes
- Connection size commonly indicated: NPT 1/4 (left-handed specified on some variants).
- Accuracy class: Class 2.5 (standard variants).
- Typical weight for many YO-50 variants: approx. 110 g net; may vary (e.g. ~106 g or ~130 g for certain PSI versions).
- Mounting: radial (most YO-50 variants).
Characteristics / specifications
- Brand: Xuzhou Hongye
- Model / series: YO-50
- Material (standard): case (iron), movement (brass), connection (brass)
- Optional materials: case/bourdon/connection in 316 / 316L or Hastelloy for corrosion-resistant variants
- Dial diameter: typ. Ø 50 mm (YO-50); other series/variants: 36 mm, 40 mm, 25 mm
- Measurement ranges (selection): 0~0.1 MPa; 0~0.16 MPa; 0~0.25 MPa; 0~0.6 MPa; 0~1 MPa; 0~1.2 MPa; 0~2.5 MPa; 0~4 MPa; 0~16 MPa; 0~25 MPa; 0~25 bar; 0~100 bar; 0~250 bar; 0~300 bar; 0~2000 PSI; etc.
- Connection size: NPT 1/4 common (sometimes left-hand)
- Accuracy class: Class 2.5 (standard)
- Operating temperature: -20 ℃ to +60 ℃
- Relative humidity: ≤ 85%
- Weight: typically approx. 110 g (varies by version)
- Mounting: radial
