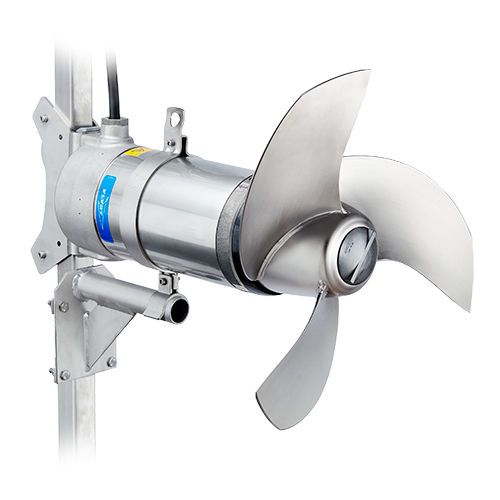

Propeller mixer Flygt 4200

batchfor liquidswater treatment

High-efficiency IE4 equivalent motor Integrated power electronics that eliminate the need for external Variable Frequency Drives (VFD) With 3 propeller sizes of of 370, 580 and 770 mm that have optimized and fixed blade angle Variable output (thrust) with speed ranging from 290 to 800 rpm Scalable mixer control system with flexibility to match different process scenarios Tank-side or remote control by adding FPG 415 gateway with analog I/O and fieldbuses Easy to upgrade to flexible mixer control (ADF-system). The mixer stays the same, independent of control system. Easy to install for mixer replacement installations Consistenly correct propeller rotation Soft start and stop Automatic overload protection Power factor close to 1 Full status and alarms information for flexible control (ADF-system) Jog wheel operator panel FOP 315, or touch screen operator panel FOP 402 (option for ADF-system) With its ability to adjust the output to the real demand, Xylem’s Flygt 4200 compact adaptive mixer series revolutionizes the wastewater treatment industry by bringing complete control and adaptability into the mixing process. The AD standard control system with pre-set control incorporates many built-in valuable features providing large energy savings, key autonomous protection capabilities and scalability for flexible control functionality (ADF-system). Ease of connectivity and connections to the operator panel allow fully integrated monitoring functions, so you can be assured of optimal mixer operation wherever you may be.
