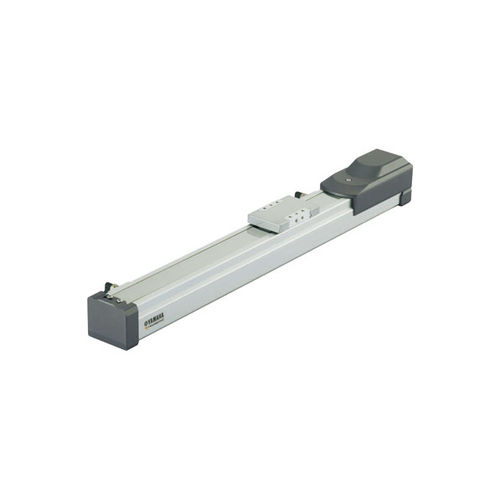

Cartesian robot SSC series
1-axisfor assemblypackaging

Cartesian robot
Cartesian robot
Cartesian robot
Add to favorites
Compare this product


Characteristics

Type
Cartesian
Number of axes
1-axis
Function
for assembly, packaging, pick-and-place, palletizing, loading, unloading, dispensing, spark optical emission, for production, depalletizing
Application domain
for the food industry, for the electronics industry, for the pharmaceutical industry, for medical applications, for clean rooms
Other characteristics
compact, high-speed, high-precision
Payload

Max.: 12 kg
(26.455 lb)

Min.: 1 kg
(2.205 lb)

Reach

Max.: 800 mm
(31.5 in)

Min.: 50 mm
(1.97 in)

Repeatability

0.02 mm
(0.0008 in)

Speed

Max.: 1,000 mm/s

Min.: 100 mm/s

Description

Suitable for electronics parts, food, and medical equipment related work in the clean room. Clean single-axis robot SSC type is introduced. SSC type (TRANSERVO series)Clean single-axis robots A clean room applicable model of the less expensive compact single-axis robot TRANSERVO series. Suction air joint is provided as standard accessory and low dust emission grease is used. As a stainless sheet with excellent durability is attached to the slide table surface, this achieves high cleanliness degree. This robot can also be used vertically. Degree of cleanliness : CLASS 10 *Per 1cf (0.1µ base),when suction blower is used.
