Superluminescent light source

near-infraredNIRbroadband

Product Description

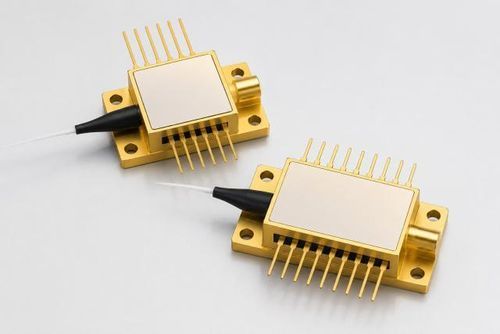

YOEC's 1310 nm and 1550 nm Superluminescent Diode (SLD) Butterfly Device is a broadband light source engineered for fiber optic gyroscopes, fiber optic sensing systems, optical coherence tomography (OCT), and optical communications testing. Based on InP semiconductor technology, the device provides high optical output power, wide spectral bandwidth, low spectral ripple, and reliable performance. The integrated Thermoelectric Cooler (TEC) and hermetically sealed butterfly package enable stable operation in industrial and aerospace environments.

Applications

• Fiber Optic Gyroscope (FOG): stable broadband source for high-precision inertial navigation.
• Fiber Optic Sensors: interferometric and distributed sensing, precision measurement systems.
• Optical Coherence Tomography (OCT): broad spectrum for improved axial resolution in imaging.
• Optical Test & Measurement: component characterization and communication system testing.
• Optical Fiber Communication Systems: laboratory and specialty communication testing.

Features

• Optical output power up to 15 mW
• Broadband spectrum with low coherence
• Low spectral ripple (≤0.2 dB)
• Built-in TEC for wavelength and power stability
• Hermetically sealed butterfly package
• Available with polarization-maintaining (PM) or single-mode fiber
• 8-pin and 14-pin package options
• High reliability and long operational lifetime

Technical Specifications

• Operating Wavelength: 1310 nm / 1550 nm
• Optical Output Power: 5–15 mW
• Spectral Bandwidth (FWHM): 30–40 nm
• Spectral Ripple: ≤0.2 dB
• Forward Voltage: 1.2 V
• Polarization Extinction Ratio: ≤1.0 dB
• Tracking Error: ±1.0 dB
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +80°C
• TEC Voltage: 3.0 V
• TEC Current: 1.5 A
• Package Options: 8-pin hermetic butterfly; 14-pin hermetic butterfly
• Fiber Output Options: Single-mode fiber; Polarization-maintaining (PM) fiber
• Custom wavelength, output power, fiber type, and connector configurations available
