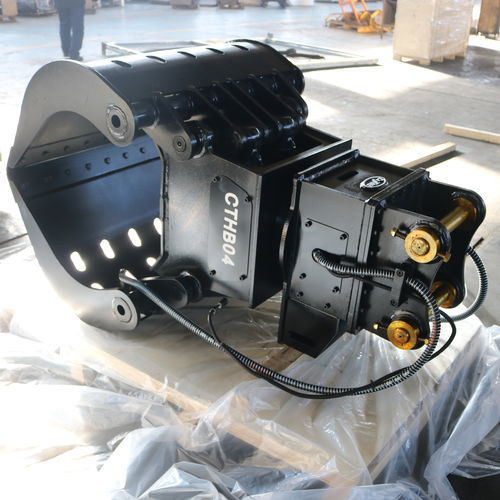

Sorting grapple CTHB04

WOOD GRAPPLE Custom Designs Int. Standards Another hydraulic excavator attachment mainly used in picking up and transporting lumber. These hydraulic arms reach out and grab piles of wood with ease. You can order your wood grapple in different sizes specific to various needs and are designed with a unique shape to complement the purpose of the wood grapple. SPECIFICATIONS Model - Claw width (mm) - Small grab width (mm) - Overall height (mm) - Maximum opening (mm) - Total Weight (KG) - Applicable excavator model (T) 04 mechanical claw - 550 - 300 - 1540 - 150 - 320 - 5-8 06 mechanical claw - 640 - 400 - 1680 - 160 - 580 - 10-15 08 mechanical claw - 800 - 490 - 2200 - 250 - 1000 - 20-25 04 mechanical claw - 580 - 350 - 1500 - 1400 - 400 - 6-10 04 mechanical claw - 530 - 380 - 900 - 1400 - 420 - 6-10 04 mechanical claw - 420 - 240 - 1400 - 1400 - 415 - 6-10 06 Mechanical claw - 600 - 440 - 1200 - 1600 - 700 - 10-15 06 Mechanical claw - 550 - 350 - 1800 - 1600 - 800 - 10-15 08 Mechanical claw - 700 - 480 - 2300 - 2300 - 1600 - 20-30
