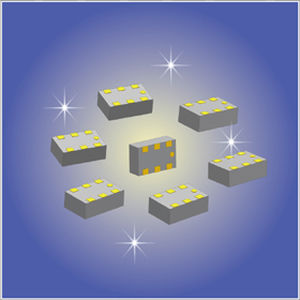

Phase coupler HC09T03
RF hybrid

phase coupler
phase coupler
Add to favorites
Compare this product


Characteristics

Applications
phase
Other characteristics
RF hybrid

Description

Yantel 3dB 90° hybrid coupler is a low profile,low cost high performance surface mounted device.This series products are suitable for AMPS,DCS,PCS,UMTs & 3G band applications.The excellent electrcal acteristics of high isolation, high return loss,low ion loss and tight amplitude & phase balance can reach rigorous requirements of power distribution & combination and signal control circuits.Such as balanced amplifiers,variable attenuators & phase shifters,LNAs. ●Very Low Loss ●Tight Amplitude Balance ●High lsolation ●Low VSWR ●Good Repeatability ●CTE compatible with FR4, G-10, RF-35, RO4350B and polyie ●Immersion gold, prevent surface oxidation & scratch ●RoHS Compliant ●Tape & Reel Package available ●Power Amplifiers ●LNAs ●Variable Attenuators ●Variable Phase Shifter

Catalogs

No catalogs are available for this product.

See all of Yantel Corporation‘s catalogs
