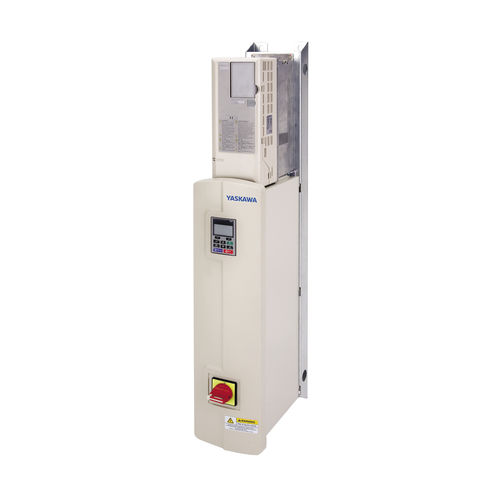

HVAC AC drive Z1000 Bypass series
three-phasedigitalstandard

HVAC AC drive
HVAC AC drive
Add to favorites
Compare this product


Characteristics

Type
three-phase, digital
Mounting
standard, vertical, built-in
Applications
for pumps, HVAC, fan
Protection class
NEMA 1
Other characteristics
programmable, intelligent
Power

Min.: 372.9 W (1,272.4 BTU/h)

Max.: 372,900 W

Current

Min.: 1.6 A

Max.: 590 A

Output frequency

60 Hz

Description

1 - 500 HP HVAC-Specific AC Drive with 2 or 3 Contactor Bypass The Z1000 Bypass Package is optimized with an Intelligent Bypass and advance BAS interface. The design sets a new benchmark for performance, benefits and quality. The Z1000 Bypass is BTL listed, view listing. The Intelligent Bypass, when enabled, can transfer the motor across the line when the application requires 60Hz. Most HVAC systems require 60Hz at peak demand (Summer months – daytime), which will utilize the intelligent bypass function. Removing the drive at 60 Hz saves energy and removes harmonics at worse case conditions. • Two Contactor Bypass • 100k AIC Package Rating • Input "Non-Fused" Disconnect • Drive H-O-A Keypad used for Bypass • Standard Digital Inputs (5) • Run • Safety • BAS Interlock • Auto Transfer to Bypass • Smoke Purge • Programmable Digital Inputs (3) • Form "C" Programmable Relays (4) • All Bypass Functions Work with Network Communications • Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, APOGEE FLN and Metasys N2 • Phase Loss & Low Voltage Monitor – Protects Against Contactor Coil Burn-out • Motor Amp Display in Bypass – True loss of load indicator • Duct Pressurization Function (Pre-run)
