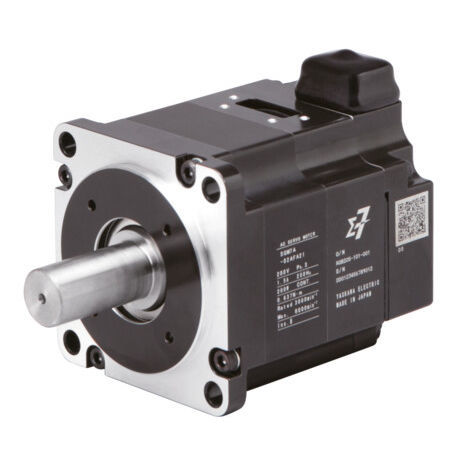

Low-inertia servomotor SGM7A

brushlessAC400 V

The general-purpose workhorse of the Sigma-7 line, SGM7A is available in a wide range of sizes and covers the capacity spectrum from low to medium power. Each of these brushless rotary servo motors is capable of producing a high rate of power at extremely low levels of inertia. SGM7A servos are also designed to deliver high torque performance when an application requires it. 24-bit encoder resolution maintains industry-leading positional accuracy across the power spectrum. Highlights: • 24-bit encoder resolution for superior accuracy • More compact than other motors with similar ratings, for a better fit in tight spaces • Completely compatible with Sigma-7 servos • Neodymium iron boron permanent magnets with a high flux density reduce rotor size • Advanced magnetic circuitry and optimum winding geometry deliver very low cogging torque • Safety rated at SIL 3 (IEC 61508) • IP67 rated for resistance to dust, water washdown • Functions in temperatures above 60oC, altitudes above 2000 ft. • Runs 20% cooler than previous generation products • Holding Brake and Shaft Seal options available
