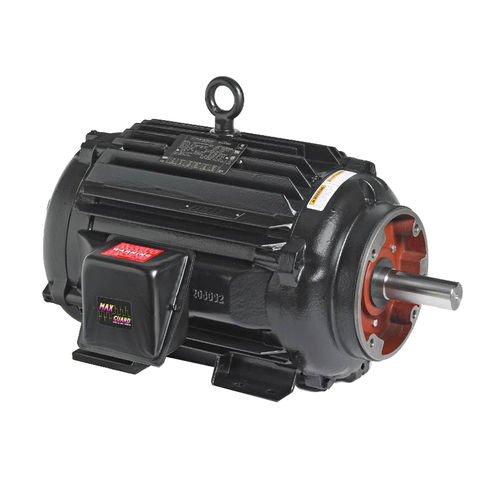

AC motor SyMAX
synchronous460 V230 V

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Voltage
460 V, 230 V
Protection class
IECEx
Configuration
permanent magnet, cast iron
Cooling mechanism
air-cooled
Other characteristics
high-efficiency, high-torque, high-power, low-vibration, precision, low-inertia, NEMA
Intensity

Min.: 0.93 A

Max.: 33.7 A

Rotational speed

1,800 rpm
(11,309.73 rad.min-1)

Description

The SyMAX® motor is the next generation of technology in motor efficiency and performance. The SyMAX permanent magnet AC motors offer unique solutions for today’s demanding applications. This product’s unparalleled power density, unprecedented performance, and unmatched efficiency are another industry first. - "Ultra-EfficientTM - Significant energy savings over AC induction - Max Guard® insulation system - Normal form factor (NEMA or IEC mounting and dimensions) - Reduced operating temperature - Sound levels exceed requirements in IEEE841 specification - Low cogging torque - Optimized Back EMF - Full torque at zero speed (Infinity:1) - Normal form factor (NEMA or IEC mounting and dimensions) - Terminal block connections - LowCogTM design - WorryFreeTM bearing system - Design-Ready to accept internally mounted AEGISTM SGR - Interior Permanent Magnet topology - Wide air gap - Precision balanced to < 0.08 in/s vibrational velocity - Comprehensive nameplate - UL Recognized, CSA Certified - CE Mark
