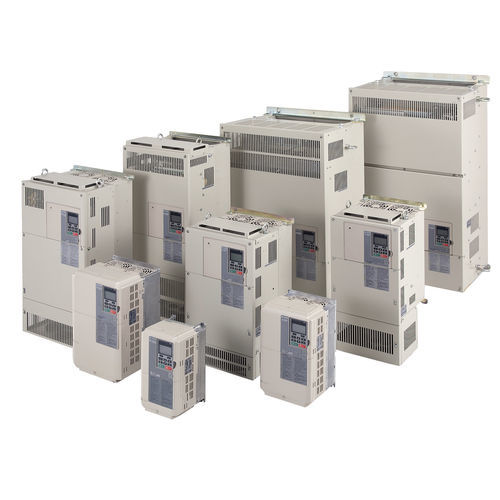

Pump AC drive P1000 series
three-phasedigitalvertical

pump AC drive
pump AC drive
pump AC drive
pump AC drive
pump AC drive
Add to favorites
Compare this product

Characteristics

Type
three-phase, digital
Mounting
vertical
Applications
pump, industrial, fan
Protection class
NEMA 1
Power

Max.: 746,000 W

Min.: 522.2 W

Current

Max.: 150 mA

Min.: 4 mA

Output frequency

Max.: 400 Hz

Min.: 0 Hz

Description

The P1000 drive provides simple, reliable, cost-effective control for variable-torque loads through 1000 HP. Specific application features, energy savings, and network connectivity make the P1000 a great choice for industrial fans and pumps. LCD Operator with Real Time Clock 5-line, 16-character alpha-numeric display with time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls. Application Macros Choose from pre-configured fan and pump setup macros to match the application for quick and easy set up. Selectable and Custom Engineering Units Allows for easy configuration of keypad display to match process and feedback devices such as PSI, GPM, Feet. Underload Detection Monitors load and will shut system down in the event of a fan belt or pump shaft breakdown. Parameter Storage and Removable Terminal Board Allows for easy replacement of control card without removing control wires, and stores all drive settings without the need for a copy device. PI Process Control Maintains a set point for closed loop control of fans and pumps for pressure, flow, or temperature regulation, and eliminates the need for a closed loop output signal from a process controller. Independent PI to control an external device in the system. Power Quality Built-in DC reactors (30 HP and larger) provide input harmonics benefit, and protection from input disturbances. Integrated 12 Pulse version (480V, 40 HP and larger) provides a cost-effective solution for low harmonics.
