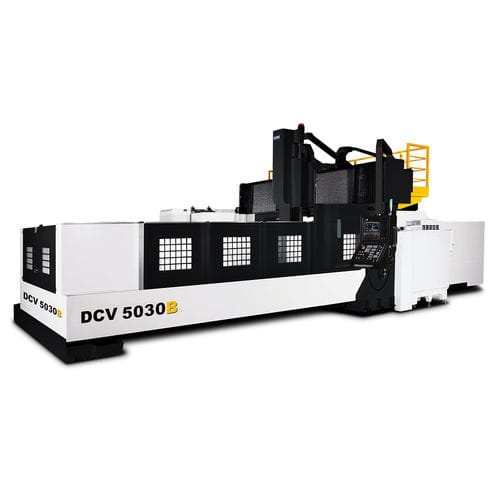

3-axis CNC machining center DCV5030Bverticaldouble-column40 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 40 tools, 60 tools, 120 tools
- Applications
- cutting
- X travel
5,200 mm
(205 in)- Y travel
3,000 mm
(118 in)- Z travel
762 mm, 1,016 mm
(30 in, 40 in)- Rotational speed
4,500 rpm, 6,000 rpm, 10,000 rpm
(28,274 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
25 kW, 45 kW
(33.99 hp, 61.18 hp)- Work feed X-axis
12,000 mm/min
(8 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Table load capacity
23,000 kg
(50,706 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
57,000 kg
(125,663.49 lb)
Description
Distance Between Spindle Nose & Table Top mm 200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016] )
Distance Between Columns mm 3,100
Table
Table Size mm 5,000 x 2,400
No. T-slot x Size x Pitch mm 11 x 28 x 200
Feedrate
Cutting Feedrate mm/min 1~10,000
ATC
Tool Magazine Capacity (Opt.) T 40(60/120)
Max. Tool Dimension (W/O Adjacent Tools) mm ø125 x 350 (ø240 x 350 )
