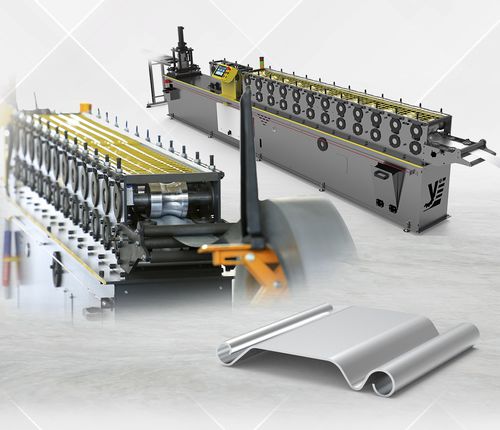

Profile roll forming machine YCLLAMautomaticPLC-controlledprecision
Add to favorites
Compare this product
Characteristics
- Finished product
- for profiles
- Control type
- automatic, PLC-controlled
- Other characteristics
- precision, punching, custom, for the building industry, fixed type, CE, with cutting
- Sheet thickness
Min.: 0.7 mm
(0 in)Max.: 1.2 mm
(0 in)- Sheet width
Min.: 178 mm
(7 in)Max.: 190 mm
(7 in)180 mm
(7 in)
Description
Roll foming machine details ;
1. Complete set decoiler + profiling machine + conveyor
2.Compact, basic and easy to use machine
3.Driveshaft:42mm,
4.Crack-resistant 4140 steel profiling rolls with a hardness of 55-58 Hrc.
5.Motor Volt 7.5 Kva
6.YCS gear reducer (35rpm)
7. Speed : 20-25mt/mnt
8.Produced meters reader: via encoder
9. 3points of Emergency stop
10. Pressure light with oil pressure indicator,
11.Mini fire extinguisher
12.Waste box
13. Tool box
14. PLC-driver, GMT CNT
15.Reader of measurements via Encoder,
16.Voltage 380 volt,
17.GMT CNT electronic component
18.7'' touch screen
19.Remote control
20. Silent profiler
21. Manufactured according to EU standards with certification
22.languages (Tr/Fr/Eng)
