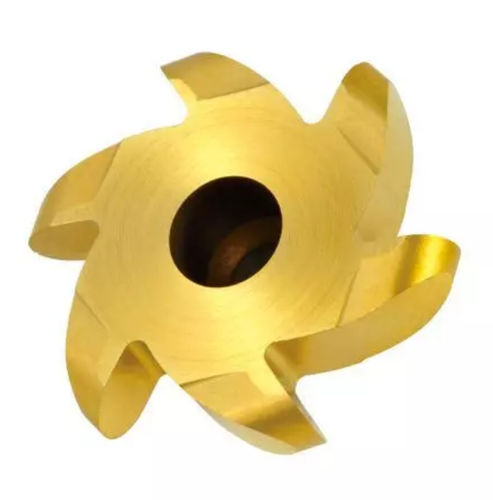

Threaded insert 3T

solid carbidefor profiles

For a radius slot that requires an O-ring in the inner hole or a radius at the bottom of the groove, a custom-made solid R-groove cutter would be needed in the past to machine this type of workpiece, which was time inefficient, plus the poor performance of the solid welded cutter and expensive solid carbide tool. YIH TROUN has developed a new solution in indexable insert type with radius 0.5 - 3.0 inserts, allowing convenient replacement for different radius angles with a single UFO shank. A variety of inserts are available for different machining materials, while the six-tooth design and the geometric angle of the insert greatly improve the machining efficiency and tool life. Stocks of radius inserts with standard radius are all available to spare further customization. Features The accurate insert center positioning gives a better tool life and machining precision. The 6-tooth design and geometric angle of insert greatly increase the machining efficiency and tool life.
