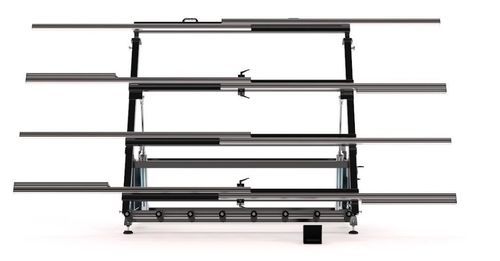

Window and door assembly bench PWB 4100glazingpneumaticcompressed air
Add to favorites
Compare this product
Characteristics
- Product to be assembled
- glazing, window and door
- Power source
- pneumatic, compressed air
- Options and accessories
- sash, adjustable
Description
Product overview
This is a pneumatic workbench for assembly of doors, windows, frames, sash profiles and glazing. It features two angled, width‑adjustable work platforms, an upper surface tiltable to 70°, and lateral connections for pneumatic and electric tools.
Main features
Technical specifications
This is a pneumatic workbench for assembly of doors, windows, frames, sash profiles and glazing. It features two angled, width‑adjustable work platforms, an upper surface tiltable to 70°, and lateral connections for pneumatic and electric tools.
Main features
- Designed for assembly of door and window frames, sash profiles and glazing
- Two angled, width‑adjustable work platforms
- Upper surface tiltable up to 70° to facilitate glass installation
- Horizontal and vertical expansion to accommodate large frames and sashes
- Pneumatic quick coupling and side electrical outlet for pneumatic/electric tools
- Dimensions (W x L x H) Wmax/Wmin 2560–1770 x Lmax/Lmin 3760/1940 x H 865 mm
- Maximum frame mounting: 3760 x 2560 mm
- Load capacity: 500 kg
Technical specifications
- Model: PWB 4100
- Operating air pressure: 6–8 bar
- Machine weight: 260 kg
- Load capacity: 500 kg
- Dimensions (W x L x H): Wmax/Wmin 2560–1770 x Lmax/Lmin 3760/1940 x H 865 mm
- Maximum frame mounting: 3760 x 2560 mm
- Upper surface tilt: up to 70°
