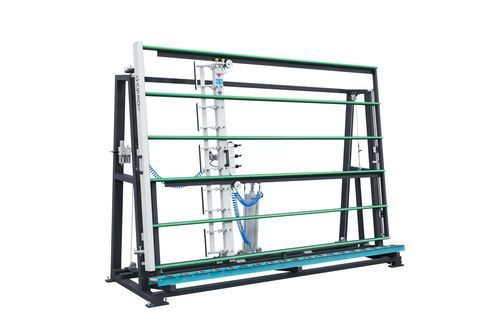

Window and door assembly bench GAS 301

glazingpneumaticcompressed air

Product info
It is used to attach glass to doors and windows in series.

General features

• Designed for the fast installation of glass on windows and doors
• Glazed joinery transferring to package on rollers
• Parallel block clamps allow you to set an appropriate balance
• Raising the workpiece 500 mm up for easier installation
• Max./Min. frame mounting dimensions with clamps: Wmax: 2375 mm, Wmin: 300 mm / Hmax: 3000 mm, Hmin: 300 mm
• Max./Min. frame mounting dimensions without clamps: Wmax: 2700 mm, Wmin: 300 mm / Hmax: 3000 mm, Hmin: 300 mm
• The angle of the upper surface of the table is 70° to facilitate mounting of the glass
• Width (W) x Length (L) x Height (H): 900 x 3050 x 2400 mm
• Loading capacity: 450 kg

Technical specifications table
Electrical: --- / --
Rotation speed: --
Capacity: --
Air pressure: 6 bar
Dimensions (W x L x H): 900 x 3050 x 2400 mm
Product weight: 615 / 610

Product video
Product video available demonstrating GAS 301 operation.

Features / Technical specifications

• Application: fixing glass to doors and windows in series
• Workpiece lift: 500 mm
• Table top angle: 70° to facilitate glass mounting
• Dimensions (W x L x H): 900 x 3050 x 2400 mm
• Load capacity: 450 kg
• Operating pressure: 6 bar
• Frame mounting dimensions (with clamps): Wmax 2375 mm, Wmin 300 mm / Hmax 3000 mm, Hmin 300 mm
• Frame mounting dimensions (without clamps): Wmax 2700 mm, Wmin 300 mm / Hmax 3000 mm, Hmin 300 mm
• Electrical data, rotation speeds and some capacities not specified on the sheet
