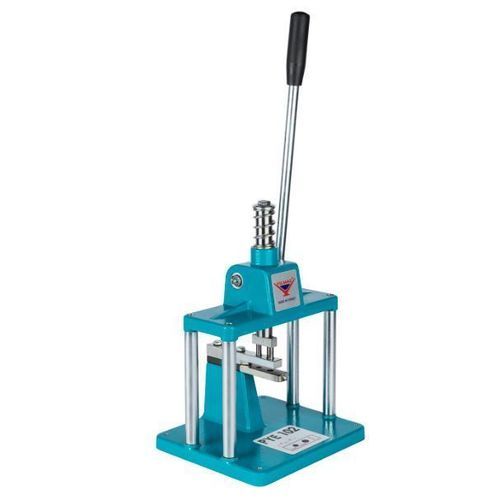

Manual punching machine PYE seriesfor aluminum profilespunching machine
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Product handled
- for aluminum profiles
- Associated function
- punching machine
- X travel
210 mm
(8.27 in)- Y travel
180 mm
(7.09 in)- Plate thickness
1.5 mm
(0.06 in)
Description
Product information
Manual punch press machines designed to open corner joint holes and slots on aluminium profiles used in door and window systems. Four versions are available: PYE 101, PYE 102, PYE 103 and PYE 104. These units perform hole and slot punching operations on profile corners.
General features
Technical specifications
Accessories (standard)
Accessories (optional)
Manual punch press machines designed to open corner joint holes and slots on aluminium profiles used in door and window systems. Four versions are available: PYE 101, PYE 102, PYE 103 and PYE 104. These units perform hole and slot punching operations on profile corners.
General features
- Opens corner joint holes and slots on aluminium profiles
- Capacity for corner thicknesses up to 1.5 mm
- Practical manual operation for on-site and workshop use
- Ergonomic machine body for operator comfort
- Hardened special punch tool set for long tool life
- Usable inner width / height: W 210 mm / H 180 mm
- Die height from blank: 100 mm
Technical specifications
- Models: PYE 101, PYE 102, PYE 103, PYE 104
- Function: hole and slot punching for corner joints on aluminium profiles for door and window systems
- Maximum corner thickness: 1.5 mm
- Usable inner dimensions: Width 210 mm, Height 180 mm
- Die height from blank: 100 mm
- Punch tool: hardened special punch tool set
- Design: ergonomic body for manual operation
Accessories (standard)
Accessories (optional)
