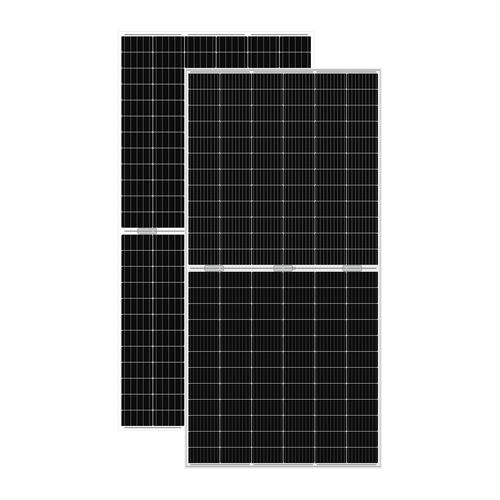

Monocrystalline silicon PV solar module YLM 144CELL 182PERCCEISOTUV
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- TUV, CE, ISO, IEC
- Other characteristics
- PERC
- Peak power (Wp)
Max.: 555 W
Min.: 530 W
- Open-circuit voltage
Max.: 49.97 V
Min.: 49.22 V
- Short circuit current
Max.: 14.04 A
Min.: 13.69 A
- Max power voltage
Max.: 42.2 V
Min.: 41.4 V
- Max power current
Max.: 13.17 A
Min.: 12.81 A
- Module efficiency
Max.: 21.48 %
Min.: 20.52 %
- Lenght
2,278 mm
(90 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
28 kg
(61.73 lb)
Description
YLM 3.0 modules use high efficiency p-type monocrystalline PERC cell technology. With high quality encapsulation materials and classic glass-backsheet structure, YLM 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
