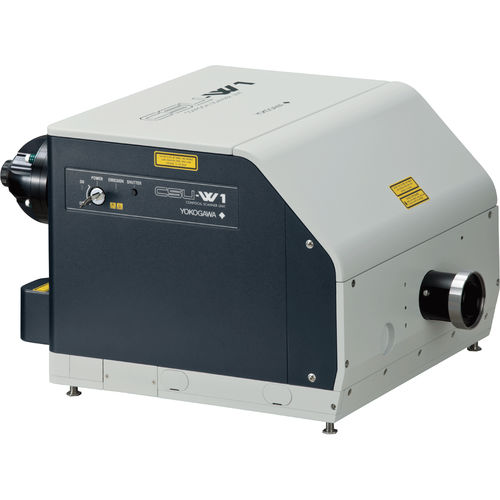

XZ scanner CSU-W1

measurementlaserinfrared

The CSU-W1 Confocal Scanner Unit is our widest field of view confocal, providing the clearest image resolution of our imaging systems. The system features switching mechanisms to enable fully automated experiments and a newly designed disk unit to improve image clarity of thick samples. New option CSU-W1 Uniformizer is released. About Uniformizer Wide and clear Near Infrared (NIR) Port: Up to 785nm 3 configurations: 1-camera model, 2-camera model, split-view model New bright field path (Standard) Selectable pinhole size: 25 pinhole disk, 50 pinhole disk or double disk External light path 10-position filter wheel (1 Camera model, 2 Camera model) Fully automate experiments with the motorized switching mechanism Wide Widest FOV confocal! Provides 4 times wider FOV than the conventional model. Clear Newly designed disk unit offers much improved image quality. Due to significantly reduced pinhole crosstalk, CSU-W1 enables clear observation much deeper into thick samples. Mouse ES cell colony Fluorescent probe: H2B-EGFP（Excitation：488nm） mCherry-MBD-NLS（Excitation: 561nm） Objective lens: 60x silicone Z-sections/stack: 100um（0.4m/251slices) By courtesy of Jun Ueda, Ph.D. and Kazuo Yamagata, Ph.D., Center for Genetic Analysis of Biological Responses, The Research Institute for Microbial Diseases, Osaka University
