Cylindrical gear wheel MHFGH02003511-DIN6

helical-toothedflangesteel

Product Overview
Series MHFGH-DIN6 helical flange ground pinion. Material: SCM440. Left-hand helix angle: 19°31′42″. Induction hardened teeth and ground surface. Hardness: HRC50-55.

Technical Data
Module (M): 2
Quality (Q): DIN6
Number of Teeth (Z): 35
Outer diameter (øD): 79.8 mm
Bore (ød2): 16.2 mm
Maximum feed force range (kN): ≤20
Maximum feed force (kN): 13.74
Weight: 0.75 kg
Pitch Circle Diameter (ød): 74.272 mm
W1: 26 mm

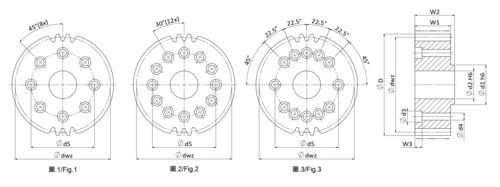

Figure: 1
Profile Modification Factor (x): 0.382
Working Pitch Diameter Range (ødwz): 70-100 mm
Working Pitch Diameter (ødwz): 75.8 mm
Flange Shaft (ød1): 20.0 mm
Bolt Specification (M): 8 - M5 x 45°
ød3: 9.5 mm
ød4: 5.5 mm
Flange Pitch Circle Diameter (ød5): 31.5 mm
W2: 29 mm
W3: 12.0 mm
Unit: mm

Key features / Technical specifications

• Series: MHFGH-DIN6 helical flange ground pinions
• Material: SCM440
• Helix: Left-hand, 19°31′42″
• Induction-hardened teeth and ground surface
• Hardness: HRC50-55
• Module (M): 2
• Quality (Q): DIN6
• Number of Teeth (Z): 35
• Pitch Circle Diameter (ød): 74.272 mm
• Working Pitch Diameter (ødwz): 75.8 mm (range 70-100 mm)
• Max feed force: 13.74 kN (≤20 kN)
• Weight: 0.75 kg
• Bolt specification: 8 - M5 x 45°
