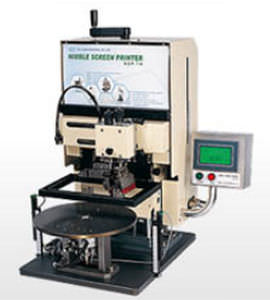

Screen Printer NSP-1A
The attached turntable mechanism of the desktop mini screen printer NSP-1A《Machine type: Screen Printer》has two sets of fixture, which are rotated alternately, and the use efficiency is very excellent. One set of fixture executes the work of printing; another set of fixture executes the work of loading material and unloading material. Turntable uses orientation bolt to control the position of fixture, using vacuum suction to control the fixing and separation of fixture, and the creation vacuum can absorb the component in the working area, ensuring that the orientation is accurate and the print quality is stable; input air to relieve suction in the area of loading material and unloading material, that will make the process of loading and unloading be fast. Computer according to different requirements could set the interval of rotational time of turntable.
Screen printers equip function design of detecting the height of products and orientation detection, preventing the abnormal orientation, which will lead to the damage of halftone, and enhance the reliability of printing. The range of mesh frame in ascending and descending is only 10mm; the fast movement of mesh frame will save energy. This desktop mini screen printer has function of automatic link for hardware and software, multiple intimate designs, which are the achievement of long-term market experience, will satisfy customer in printing operation and control.
This screen printer can be used for ink printing and silver paste printing. When printing silver paste, it can depend on different type of silver paste, selecting different action program to get the best printing result.
