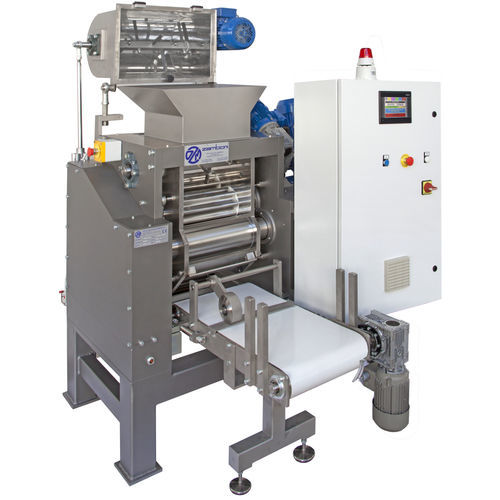

Paddle kneader Lobo/320/5C

batchfor flourdough

From the experience of the big kneading machine (see Lobo/1200/5C or Lobo/1000/5C ....) for large production and with thin sheet thickness (theoretical 2,3mm, after the swelling 3,5/4mm according to the type of mix) is born the small Lobp/320/5C. Small, but with big power, this kneader is in fact able to produce 350kg/h of dough-sheet. All the characteristics of the greatest kneader are installed on this Lobo/320/5C: • Mixer group with autonomously driven paddle shafts which keeps the dough smooth. • In order to obtain a more consistent dough in the kneading machines of the 5C series, there are 3 kneading cylinders it means that the dough is kneaded two times, thus improving both the homogeneity and the colour of the sheeted pasta. • Calibrating group realised with big diameter cylinders that take the dough from the 3 lobe groups and prepare the sheet, making it so thin that you can use directly in the majority operating machines (nester, butterfly, lasagne ...). • Two autonomous drives (kneading group and calibration group) controlled by an inverter pair make sure that power is supplied to the kneading machine while the respective speeds are managed by 3 controls, two for the single inverters and the third to modify both speeds simultaneously and proportionally (central control). • PLC for the control of the machine and with 30 different receipts to produce 30 different kink of sheets. - On this kneader can be installed the following optionals: • Water flow control • Dosing group for flour / semola • MFA/800 - High speed mixer
