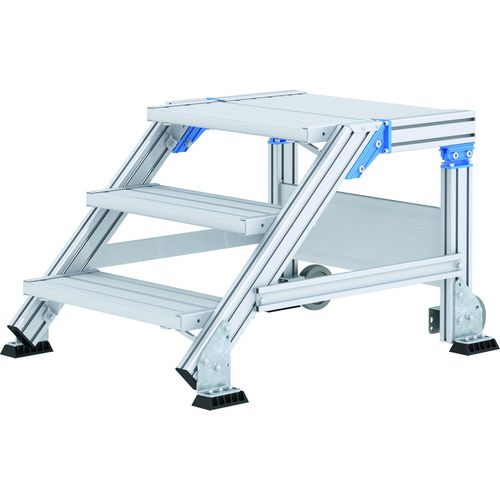

Compact work platform with easy-going steps. Choice of stationary or mobile version (for moving quickly to another working position). Ideal for work over long periods, even with tools.
Selection of tread widths 600 mm, 800 mm or 1000 mm.
Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
Individually adjustable platform lengths.
Chassis available in a non-static version as an option.
Configurable up to a vertical height of 1,500 mm (from 1,000 mm with horizontal stabiliser bar for safe standing).
Assembly elements: Support section assembly elements selectable without wheel or as a stationary work platform with floor brackets.
Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
Maximum flexibility with optional handrails and guardrails which can be removed without tools.
Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
Hints and special features
We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
Standard applied: DIN EN ISO 14 122.
